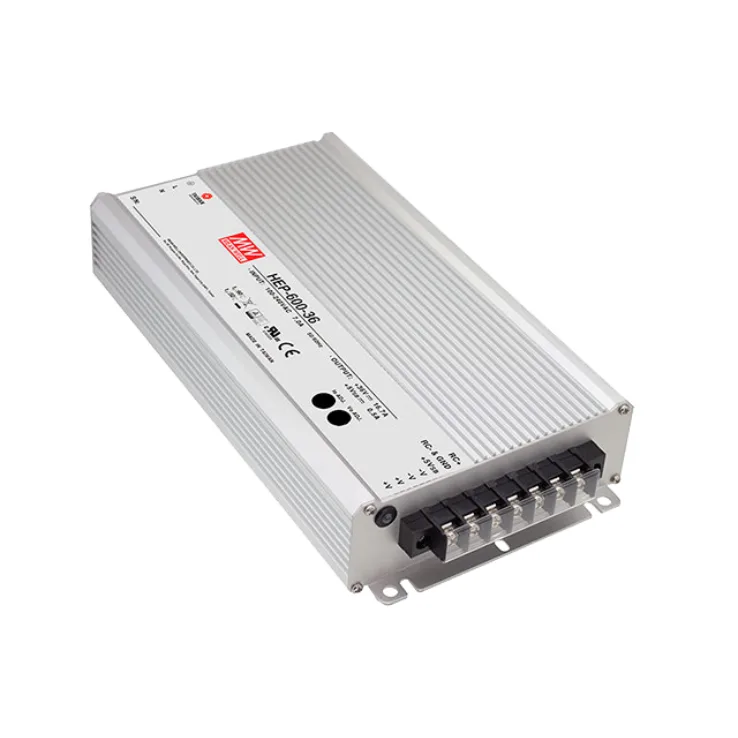

Mean Well HEP-600 Series Enclosed Power Supplies 480–604.8W

Download Datasheet
Models:
  • HEP-600-12
  • HEP-600-15
  • HEP-600-20
  • HEP-600-24
  • HEP-600-30
  • HEP-600-36
  • HEP-600-42
  • HEP-600-48
  • HEP-600-54
Manufacturer: Mean Well
Type: Enclosed Power Supplies

HEP-600 Series Features:

Withstand 10G vibration test

Fanless design, cooling by free air convection

Protections: Short circuit / Over current / Over voltage/Over temperature

Other features:

  • Universal AC input (up to 305VAC) / Full range
  • Built-in active PFC function
  • No load power consumption <0.5W at remote OFF
  • High efficiency up to 96%
  • -40~+70°C wide operating range
  • Aluminium case and filling with heat-conducted silicone
  • LED indicator for power on
  • Operation altitude up to 5000 meters
  • 6 years warranty
Wattage 480 540 560 600 600 601.2 600.6 600 604.8
Input Voltage 90-264VAC 90-264VAC 90-264VAC 90-264VAC 90-264VAC 90-264VAC 90-264VAC 90-264VAC 90-264VAC
Output Current 40A 36A 28A 25A 20A 16.7A 14.3A 12.5A 11.2A
Output Voltage 12 15 20 24 30 36 42 48 54
Output Voltage Options Single Single Single Single Single Single Single Single Single
DC output adjustment 10.2-12.6V 12.7-15.8V 17-21V 20.4-25.2V 25.5-31.5V 30.6-37.8V 35.7-44.1V 40.8-50.4V 45.9-56.7V
Dimensions 280x 144x 48 280x 144x 48 280x 144x 48 280x 144x 48 280x 144x 48 280x 144x 48 280x 144x 48 280x 144x 48 280x 144x 48
Working Temperature -40~+70°C
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3, Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, heavy industry level, criteria A
