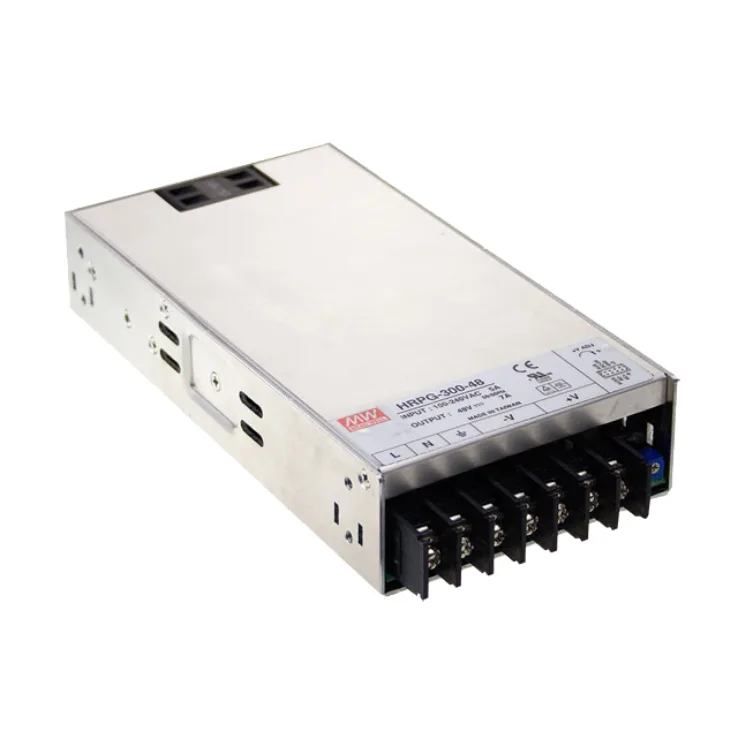

Mean Well HRP-300 Series Enclosed Power Supplies 300W

Download Datasheet
Models:
  • HRP-300-3.3
  • HRP-300-5
  • HRP-300-7.5
  • HRP-300-12
  • HRP-300-15
  • HRP-300-24
  • HRP-300-36
  • HRP-300-48
Manufacturer: Mean Well
Type: Enclosed Power Supplies

HRP-300 Series Features:

1U low profile

Protections: Short circuit/ Overload/ Over voltage/ Over temp

Other features:

  • Universal AC input/ full range
  • Withstand 300 VAC surge input for 5 seconds
  • Built-in active PFC function
  • Built-in costant current limiting circuit
  • Built-in remote sense function
  • Built-in DC OK signal
  • Forced air cooling by built-in ~DC fan
  • 100% full load Burn-in test
  • 5 years warranty
Wattage 300 300 300 300 300 300 300 300
Input Voltage 85-264VAC,120-370VDC 85-264VAC,120-370VDC 85-264VAC,120-370VDC 85-264VAC,120-370VDC 85-264VAC,120-370VDC 85-264VAC,120-370VDC 85-264VAC,120-370VDC 85-264VAC,120-370VDC
Output Current 0~60 0~60 0~40 0~27 0~22 0~14 0~9 0-7
Output Voltage 3.3 5 7.5 12 15 24 36 48
Output Voltage Options Single Single Single Single Single Single Single Single
DC output adjustment +/- 15% rated output voltage +/- 15% rated output voltage +/- 15% rated output voltage +/- 15% rated output voltage +/- 15% rated output voltage +/- 15% rated output voltage +/- 15% rated output voltage +/- 15% rated output voltage
Dimensions 199 x 105 x 41 199 x 105 x 41 199 x 105 x 41 199 x 105 x 41 199 x 105 x 41 199 x 105 x 41 199 x 105 x 41 199 x 105 x 41
Working Temperature -40~+70°C
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards EN55022 class B, EN61000- 4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry level
