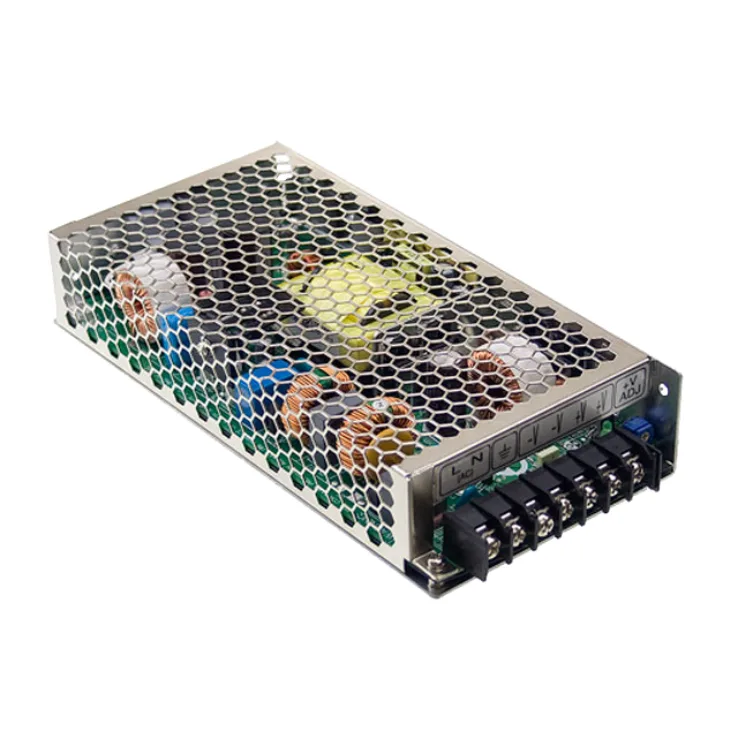

Mean Well HRPG-200 Series Enclosed Power Supplies 200W

Download Datasheet
Models:
  • HRPG-200-12
  • HRPG-200-15
  • HRPG-200-24
  • HRPG-200-3.3
  • HRPG-200-36
  • HRPG-200-48
  • HRPG-200-5
  • HRPG-200-7.5
Manufacturer: Mean Well
Type: Enclosed Power Supplies

HRPG-200 Series Features:

No Load Power Consumption<0.5W

Protections: Short circuit/ Overload/ Over voltage/Over temp.

Other features:

  • Universal AC input / Full range
  • Withstand 300VAC surge input for 5 seconds
  • built-in active PFC function
  • Built-in costant current limiting circuit
  • Built-in remote sense function
  • Cooling by free air
  • Built-in remote ON/OFF control
  • Built-in 5V / 0.3A standby output
  • 1U low profile
  • LED indicator for power on
  • 100% full load burn-in test
  • 5 years Warranty
Wattage 200 200 200 200 200 200 200 200
Input Voltage 85-264VAC,120-370VDC 85-264VAC,120-370VDC 85-264VAC,120-370VDC 85-264VAC,120-370VDC 85-264VAC,120-370VDC 85-264VAC,120-370VDC 85-264VAC,120-370VDC 85-264VAC,120-370VDC
Output Current 0~16.7 0~13.4 0~8.4 0~40 0~5.7 0~4.3 0~35 0~26.7
Output Voltage 12 15 24 3.3 36 48 5 7.5
Output Voltage Options Single Single Single Single Single Single Single Single
DC output adjustment +/- 15% rated output voltage +/- 15% rated output voltage +/- 15% rated output voltage +/- 15% rated output voltage +/- 15% rated output voltage +/- 15% rated output voltage +/- 15% rated output voltage +/- 15% rated output voltage
Dimensions 199 x 98 x 38 199 x 98 x 38 199 x 98 x 38 198 x 98 x 38 199 x 98 x 38 199 x 98 x 38 199 x 98 x 38 199 x 98 x 38
Working Temperature -40-+70B0C -40~+70B0C
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards EN55022 class B, EN61000- 4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry level
