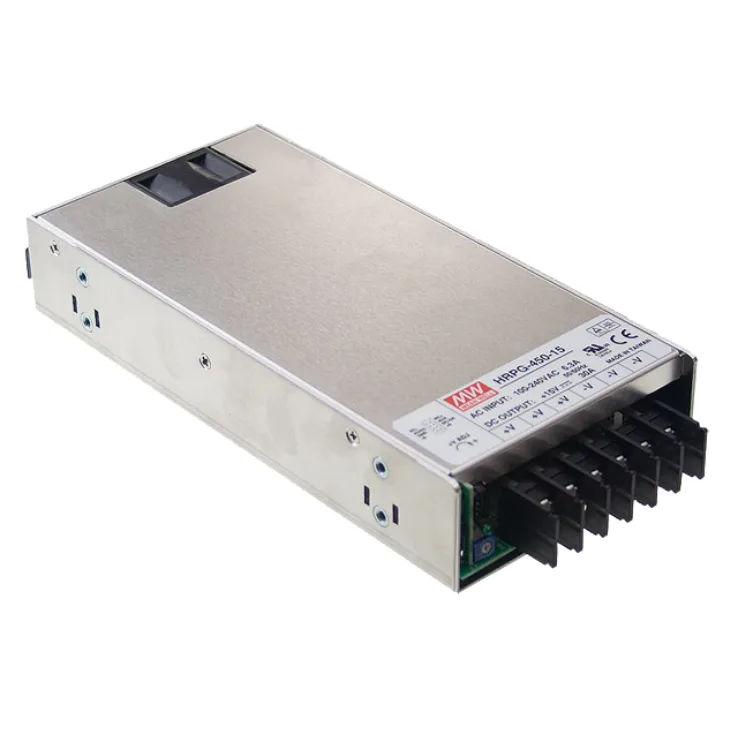

Mean Well HRPG-450 Series Enclosed Power Supplies 450W

Download Datasheet
Models:
  • HRPG-450-3.3
  • HRPG-450-5
  • HRPG-450-7.5
  • HRPG-450-12
  • HRPG-450-15
  • HRPG-450-24
  • HRPG-450-36
  • HRPG-450-48
Manufacturer: Mean Well
Type: Enclosed Power Supplies

HRPG-450 Series Features:

No load power consumption <0.5W

Protections: Short circuit/ Overload/ Over voltage/ Over temp

Features:

  • Universal AC input/ full range
  • Withstand 300 VAC surge input for 5 seconds
  • Built-in active PFC function
  • Built-in costant current limiting circuit
  • Built-in remote sense function
  • Built in remote ON/OFF control and 5V/ 0.3A standby output
  • Built-in DC OK signal
  • Forced air cooling by built-in ~DC fan
  • 1U low profile
  • 100% full load Burn-in test
  • 5 years warranty
Wattage 450 450 450 450 450 450 450 450
Input Voltage 85-264VAC, 120-370VDC 85-264VAC,120-370VDC 85-264VAC,120-370VDC 85-264VAC,120-370VDC 85-264VAC,120-370VDC 85-264VAC, 120-370VDC 85-264VAC, 120-370VDC 85-264VAC, 120-370VDC
Output Current 0~90 0~90 0~60 0~37.5 0~30 0~18.8 0~12.5 0~9.5
Output Voltage 3.3 5 7.5 12 15 24 36 48
Output Voltage Options Single Single Single Single Single Single Single Single
DC output adjustment +/- 15% rated output voltage +/- 15% rated output voltage +/- 15% rated output voltage +/- 15% rated output voltage +/- 15% rated output voltage +/- 15% rated output voltage +/- 15% rated output voltage +/- 15% rated output voltage
Dimensions 218 x 105 x 41 218 x 105 x 41 218 x 105 x 41 218 x 105 x 41 218 x 105 x 41 218 x 105 x 41 218 x 105 x 41 218 x 105 x 41
Working Temperature -40~+70°C (refer to output derating curve)
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards EN55022 class B, EN61000- 4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry level
