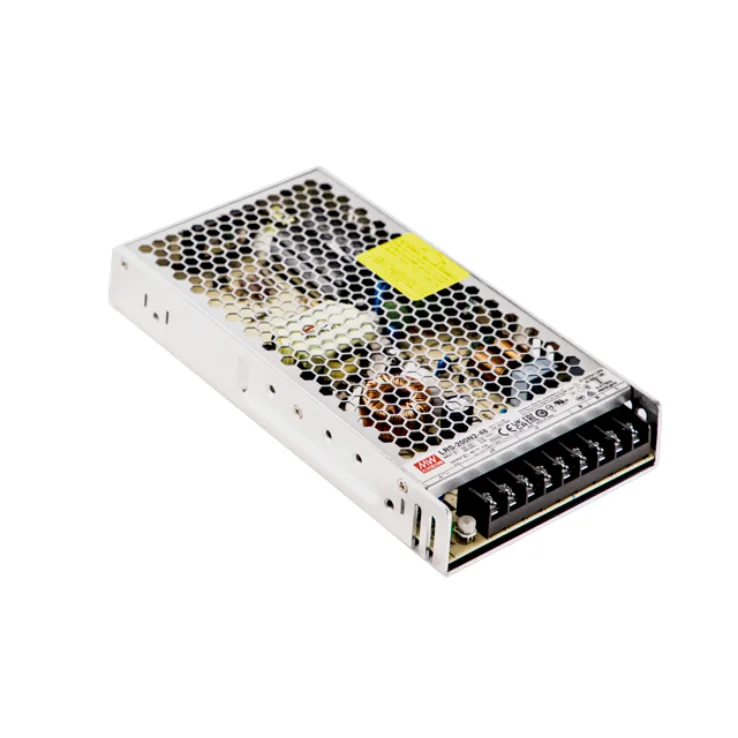

MEAN WELL LRS-200N2 Enclosed Power Supplies 204–212.4W

Download Datasheet
Models:
  • LRS-200N2-12
  • LRS-200N2-24
  • LRS-200N2-36
  • LRS-200N2-48
Manufacturer: MEAN WELL
Type: Enclosed Power Supplies

LRS-200N2 Features:

LRS-200N2 series is a 200W single-output enclosed type power supply with 30mm of low profile design.

Features
AC input range selectable by switch
Withstand 300VAC surge input for 5 second
Up to 200% peak power capability
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
1 U low profile
Withstand 5G vibration test
LED indicator for power on
No load power consumption<1W
High operating temperature up to 70℃
Operating altitude up to 5000 meters
High efficiency, long life and high reliability
3 years warranty

Wattage 204 211.2 212.4 211.2
Input Voltage 90 ~ 132VAC / 180 ~ 264VAC by switch 240 ~ 370VDC (switch on 230VAC) 90 ~ 132VAC / 180 ~ 264VAC by switch 240 ~ 370VDC (switch on 230VAC) 90 ~ 132VAC / 180 ~ 264VAC by switch 240 ~ 370VDC (switch on 230VAC) 90 ~ 132VAC / 180 ~ 264VAC by switch 240 ~ 370VDC (switch on 230VAC)
Output Current 0~17A 0~8.8A 0~5.9A 0 ~ 4.4A
Output Voltage 12V 24V 36V 48V
Dimensions 215*115*30mm (L*W*H) 215*115*30mm (L*W*H) 215*115*30mm (L*W*H) 215*115*30mm (L*W*H)
Working Temperature -25 ~ +70℃ -25 ~ +70℃ (Refer to "Derating Curve") -25 ~ +70℃
Safety Standards IEC/UL 62368-1, BSMI CNS14336-1,EAC TP TC 004,BIS IS13252(Part1): 2010/IEC 60950-1: 2005; BS EN/EN61558-1, BS EN61558-2-16 Designed by BS/EN/EN62368-1, AS/NZS 61558.1/2.16, AS/NZS 62368.1
EMC Standards Compliance to BSMI CNS13438, EAC TP TC 020
