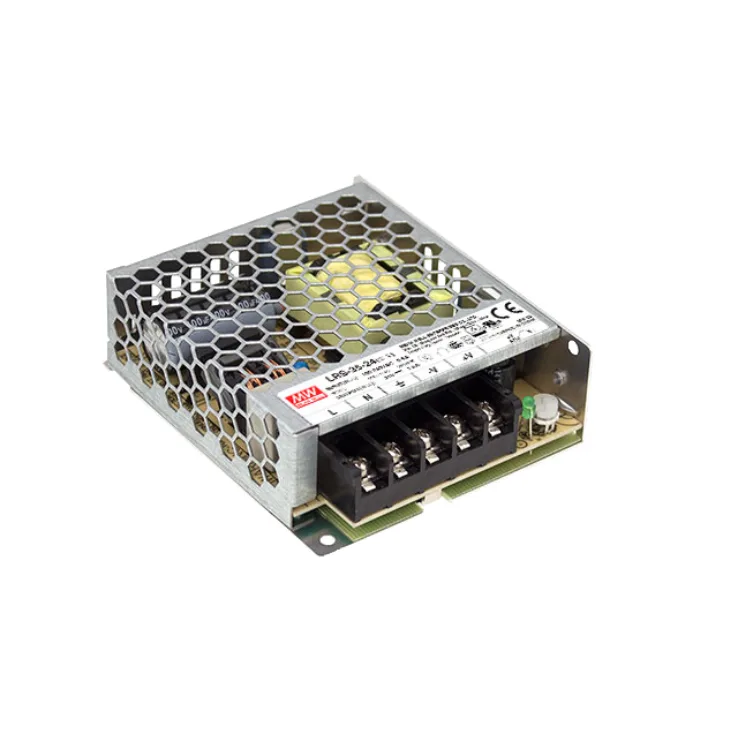

Mean Well LRS-35 Series Enclosed Power Supplies 35–38.4W

Download Datasheet
Models:
  • LRS-35-5
  • LRS-35-12
  • LRS-35-15
  • LRS-35-24
  • LRS-35-36
  • LRS-35-48
Manufacturer: Mean Well
Type: Enclosed Power Supplies

LRS-35 Series Features:

No Load power consumption <0.2W

Miniature size and 1U low profile

Protections: Short circuit/ Overload/ Over voltage.

Other features:

  • Universal AC Input/ Full range
  • Withstand 300VAC surge input for 5 second
  • No load power consumption <0.2W
  • High operating temperature up to 70°C
  • Cooling by free air convection
  • Compliance to IEC/EN 60335-1 (PD3) and IEC/EN61558-1, -2-16 for household appliances
  • Operating altitude up to 5000 meters
  • Withstand 5G vibration test
  • High efficiency, Long life and high reliability
  • LED indicatior for power on
  • 100% full load burn-in test
  • 3 years warranty
Wattage 35 36 36 36 36 38.4
Input Voltage 85~264 VAC, 120~373 VDC 85~264 VAC, 120~373 VDC 85~264 VAC, 120~373 VDC 85~264 VAC, 120~373 VDC 85~264 VAC, 120~373 VDC 85~264 VAC, 120~373 VDC
Output Current 0~7.0 0~3.0 0~2.4 0~1.5 0~1 0~0.8
Output Voltage 5 12 15 24 36 48
Output Voltage Options Single Single Single Single Single Single
DC output adjustment 4.5~5.5 10.2~13.8 13.5~18 21.6~28.8 32.4~39.6 43.2~52.8
Dimensions 99 x 82 x 30 99 x 82 x 30 99 x 82 x 30 99 x 82 x 30 99 x 82 x 30 99 x 82 x 30
Working Temperature -20~+70°C
Safety Standards UL60950-1, TUV EN60950-1, EN60335-1, EN61558-1/-2-16,CCC GB4943 Approved
EMC Standards EN55022, GB9254 Class B, EN55014, EN61000-3-2,-3, EN61000-4-2,-3,4,5,6,8,11, EN61000-6-2 (EN50082-2), Heavy Industry level, Criteria A
