| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Enclosed Power Supplies |

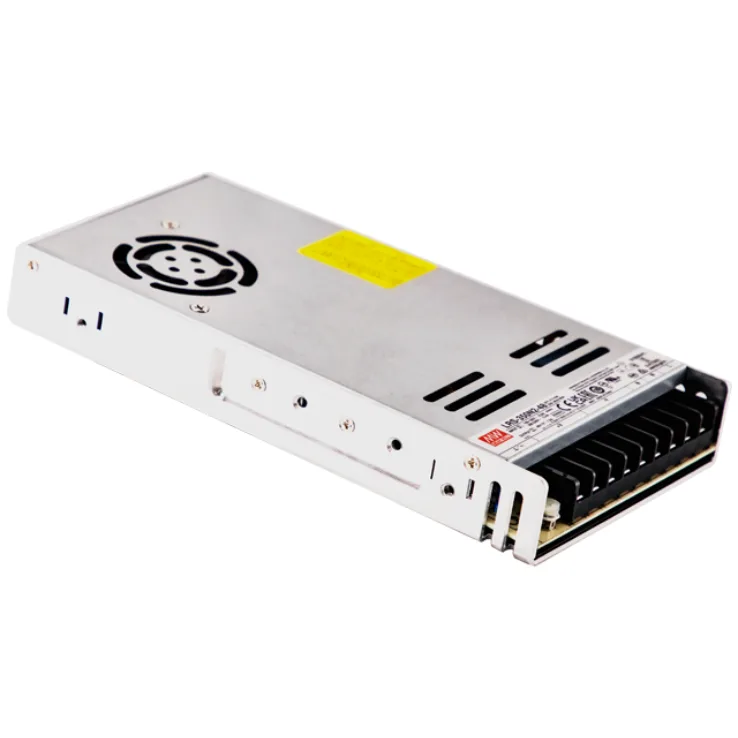

LRS-350N2 series is a 350W single-output enclosed type power supply with 30mm of low profile design.
Features
AC input range selectable by switch
Withstand 300VAC surge input for 5 second
Up to 200% peak power capability
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling by built-in DC fan
Built-in cooling Fan ON-OFF control
1U low profile
Withstand 5G vibration test
LED indicator for power on
No load power consumption <1W
High operating temperature up to 70℃
Operating altitude up to 5000 meters
High efficiency, long life and high reliability
3 years warranty
| Wattage | 348 | 350.4 | 349.2 | 350.4 |
| Input Voltage | 90 ~ 132VAC / 180 ~ 264VAC by switch 240 ~ 370VDC (switch on 230VAC) | 90 ~ 132VAC / 180 ~ 264VAC by switch 240 ~ 370VDC (switch on 230VAC) | 90 ~ 132VAC / 180 ~ 264VAC by switch 240 ~ 370VDC (switch on 230VAC) | 90 ~ 132VAC / 180 ~ 264VAC by switch 240 ~ 370VDC (switch on 230VAC) |
| Output Current | 0 ~ 29A | 0~14.6A | 0~9.7A | 0~7.3A |
| Output Voltage | 12V | 24V | 36V | 48V |
| Dimensions | 215*115*30mm (L*W*H) | 215*115*30mm (L*W*H) | 215*115*30mm (L*W*H) | 215*115*30mm (L*W*H) |
| Working Temperature | -25 ~ +70℃ | |||
| Safety Standards | IEC/UL 62368-1, BSMI CNS14336-1,EAC TP TC 004,BIS IS13252(Part1): 2010/IEC 60950-1: 2005; BS EN/EN61558-1, BS EN61558-2-16 Designed by BS/EN/EN62368-1, AS/NZS 61558.1/2.16, AS/NZS 62368.1 | |||
| EMC Standards | Compliance to BSMI CNS13438, EAC TP TC 020 | |||
