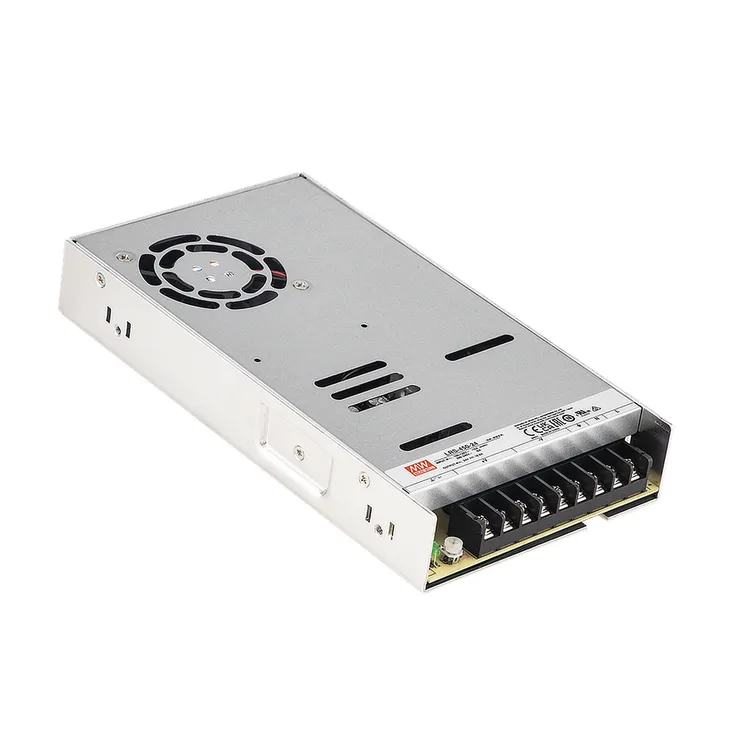

MEAN WELL LRS-450 Series Enclosed Power Supplies 375–451.2W

Download Datasheet
Models:
  • LRS-450-5
  • LRS-450-12
  • LRS-450-15
  • LRS-450-24
  • LRS-450-36
  • LRS-450-48
Manufacturer: MEAN WELL
Type: Enclosed Power Supplies

LRS-450 Series Features:

LRS-450 series is a 450W single-output enclosed type power supply with 35mm of low profile design.

Features:

  • MEANWELL patent circuitry and case design (Application number 2022220241473.0, 202230060511.8)
  • AC input range selectable by switch
  • Withstand 300VAC surge input for 5 second
  • Protections: Short circuit/ Overload/Over voltage/Over temperature
  • Forced air cooling
  • Built-in cooling Fan ON-OFF control
  • 1U low profile
  • Withstand 5G vibration test
  • High operating temperature up to 70°C
  • Operating altitude up to 5000 meters
  • 3 years warranty
  • MTBF>1KKhrs
Wattage 375 450 450 451.2 450 451.2
Input Voltage 90~132VAC 90~132VAC 90~132VAC 90~132VAC 90~132VAC 90~132VAC
Output Current 75 37.5 30 18.8 12.5 9.4
Output Voltage 5 12 15 24 36 48
Dimensions 225x124x35mm 225x124x35mm 225x124x35mm 225x124x35mm 225x124x35mm 225x124x35mm
Working Temperature -20~70°C
Safety Standards BS IEC/UL 62368-1, BSMI CNC14336-1, EAC TP TC 004, BIS IS13252(Part 1); 2010/IEC 60950-1;2005, AS/NZS62368-1 approved
EMC Standards Compliance to BSMI CNS13438, EAC TP TC 020
