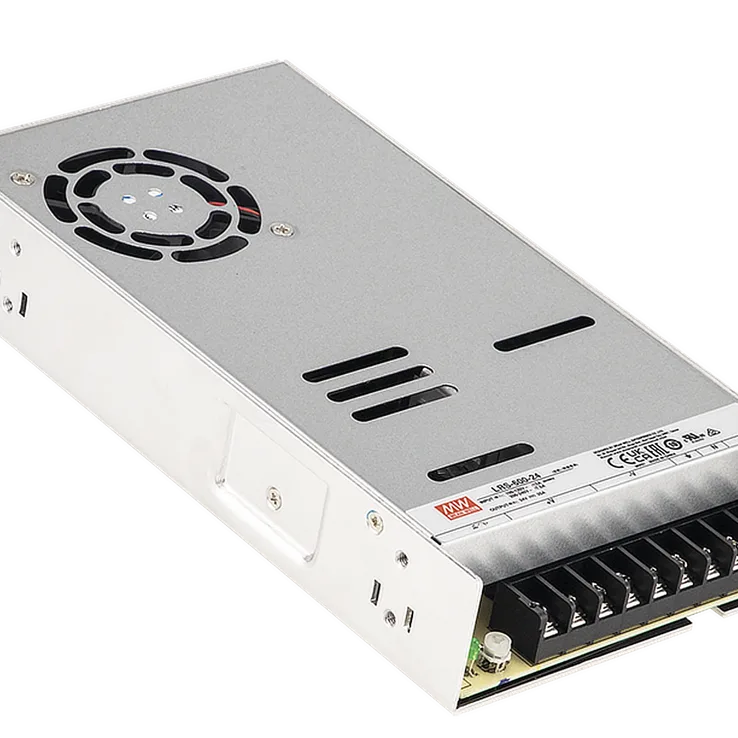

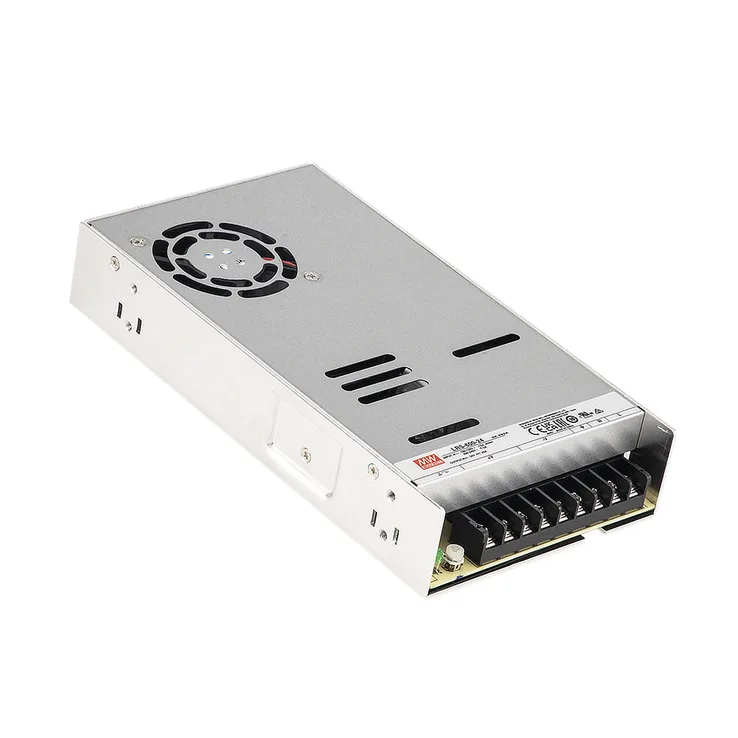

MEAN WELL LRS-600 Series Enclosed Power Supplies 500–600W

Download Datasheet
Models:
  • LRS-600-5
  • LRS-600-12
  • LRS-600-15
  • LRS-600-24
  • LRS-600-27
  • LRS-600-36
  • LRS-600-48
Manufacturer: MEAN WELL
Type: Enclosed Power Supplies

LRS-600 Series Features:

LRS-600 series is a 600W single-output enclosed type power supply with 41mm of low profile design.

Features:

  • Meanwell patent circuitry and case design (Application number 202220241473.0, 2022300060511.8)
  • AC input range selectable by switch
  • Withstand 300VAC surge input for 5 second
  • Protections: short circuit/Overload/Over voltage/Over temperature
  • Forced air cooling
  • Built-in cooling Fan ON-OFF control
  • 1U low profile
  • Withstand 5G vibration test
  • High operating temperature up to 65°C
  • Operating altitude up to 5000 meters
  • 3 years warranty
  • MTBF>1KKhrs
Wattage 500 600 600 600 599.4 597.6 600
Input Voltage 90~132VAC 90~132VAC 90~132VAC 90~132VAC 90~132VAC 90~132VAC 90~132VAC
Output Current 100 50 40 25 22.2 16.6 12.5
Output Voltage 5 12 15 24 27 36 48
Dimensions 225x124x41mm 225x124x41mm 225x124x41mm 225x124x41mm 225x124x41mm 225x124x41mm 225x124x41mm
Working Temperature -20~65°C
Safety Standards BS IEC/UL 62368-1, BSMI CNS1414336-1, EAC TP TC 004, BIS ISI3252(Part 1): 2010/IEC 60950-1;2005, AS/NZS62368-1 approved
EMC Standards Compliance to BSMI CNS13438, EAC TP TC 020
