| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Enclosed Power Supplies |

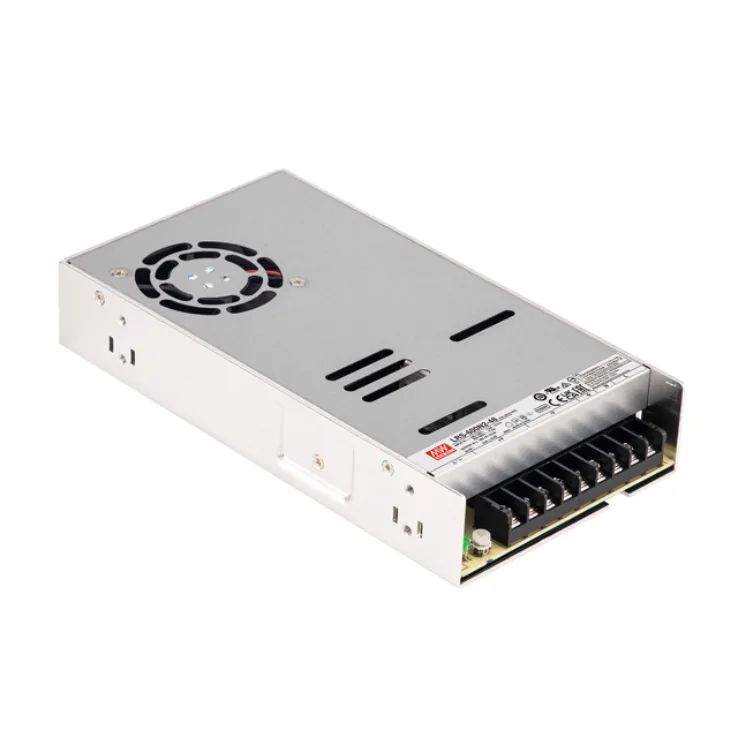

LRS-600N2 series is a 600W single-output enclosed type power supply with 41mm of low profile design.
Features
AC input range selectable by switch
Withstand 300VAC surge input for 5 second
Up to 200% peak power capability
Protections: Short circuit / Overload / Over voltage/ Over temperature
Forced air cooling
Built-in cooling Fan ON-OFF control
1U low profile
Withstand 5G vibration test
High operating temperature up to 65℃
Operating altitude up to 5000 meters
3 years warranty
MTBF>1KK hrs
| Wattage | 600 | 600 | 597.6 | 600 |
| Input Voltage | 90 ~ 132VAC / 180 ~ 264VAC by switch 255 ~ 370VDC (switch on 230VAC) | 90 ~ 132VAC / 180 ~ 264VAC by switch 255 ~ 370VDC (swith on 230VAC) | 90 ~ 132VAC / 180 ~ 264VAC by switch 255 ~ 370VDC (swith on 230VAC) | 90 ~ 132VAC / 180 ~ 264VAC by switch 255 ~ 370VDC (swith on 230VAC) |
| Output Current | 0 ~ 50A | 0 ~ 25A | 0 ~ 16.6A | 0 ~ 12.5A |
| Output Voltage | 12V | 24V | 36V | 48V |
| Dimensions | 225*124*41mm (L*W*H) | 225*124*41mm (L*W*H) | 225*124*41mm (L*W*H) | 225*124*41mm (L*W*H) |
| Working Temperature | -20 ~ +65℃ | |||
| Safety Standards | BS IEC/UL 62368-1, EAC TP TC 004, BIS IS13252(Part1):2010/IEC60950-1:2005(except for 48V), BSMI CNS15598-1,BS EN/EN61558-1，BS EN/EN61558-2-16, design refer to AS/NZS61558.1/2.16,AS/NZS62368.1 | |||
| EMC Standards | Compliance to EAC TP TC 020, BSMI CNS15936 | |||
