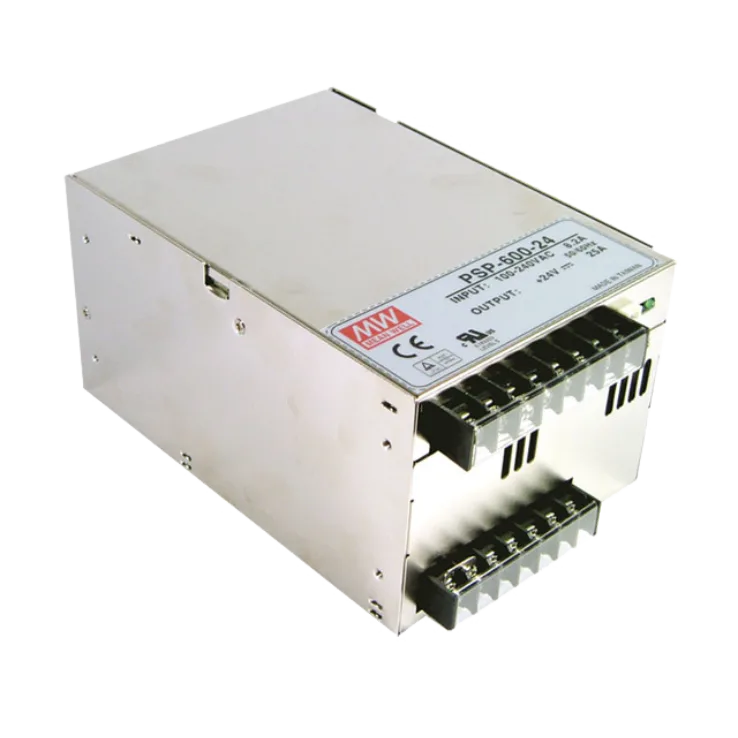

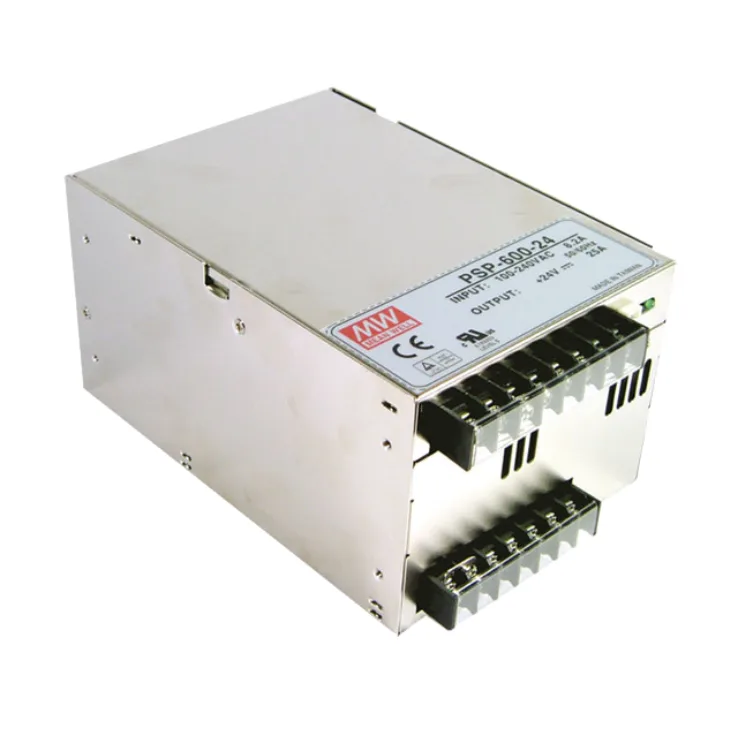

Mean Well PSP-600 Series Enclosed Power Supplies 600W

Download Datasheet
Models:
  • PSP-600-5
  • PSP-600-12
  • PSP-600-13.5
  • PSP-600-15
  • PSP-600-24
  • PSP-600-27
  • PSP-600-48
Manufacturer: Mean Well
Type: Enclosed Power Supplies

PSP-600 Series Features:

Universal AC input/ Full range

PF >0.99@115VAC; >0.95@230VAC

Protections: Short circuit/ Overload/ Over voltage/ Over Temp.

Other features:

  • Forced air cooling by built-in DC fan
  • Built-in remote sense and ON/OFF control
  • With DC OK signal output
  • Current sharing up to 2400W (3+1)
  • 3 years warranty
Wattage 600 600 600 600 600 600 600
Input Voltage 88~264VAC; 124~370VDC 88~264VAC; 124~370VDC 88~264VAC; 124~370VDC 88~264VAC; 124~370VDC 88~264VAC; 124~370VDC 88~264VAC; 124~370VDC 88~264VAC; 124~370VDC
Output Current 0~80.0 0~50.0 0~44.5 0~40.0 0~25.0 0~22.2 0~12.5
Output Voltage 5 12 13.5 15 24 27 48
Output Voltage Options Single Single Single Single Single Single Single
DC output adjustment +/-10% rated output voltage +/-10% rated output voltage +/-10% rated output voltage +/-10% rated output voltage +/-10% rated output voltage +/-10% rated output voltage +/-10% rated output voltage
Dimensions 170 x 120 x 93 170 x 120 x 93 170 x 120 x 93 170 x 120 x 93 170 x 120 x 93 170 x 120 x 93 170 x 120 x 93
Working Temperature -10~+60°C (refer to output derating curve)
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
