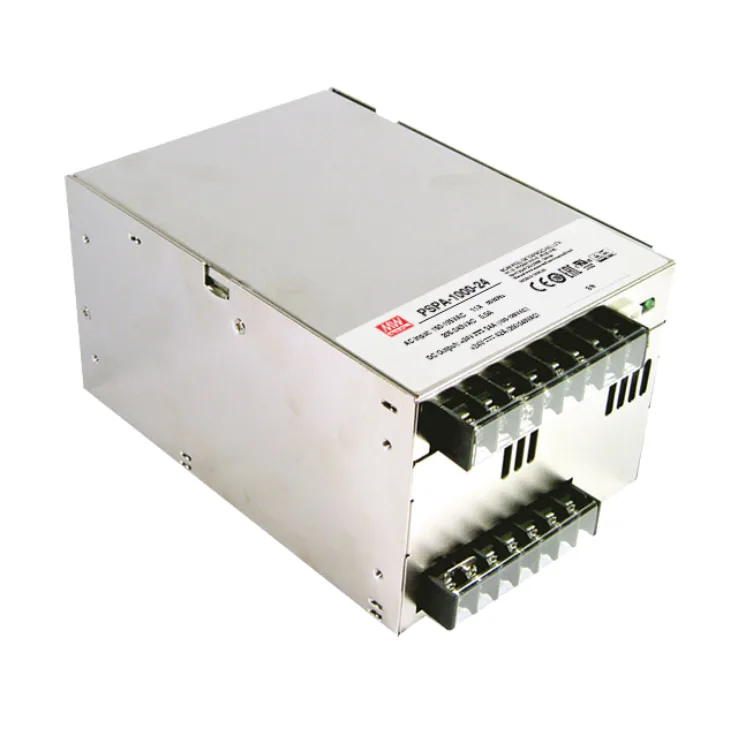

Mean Well PSPA-1000 Series Enclosed Power Supplies 960–1008W

Download Datasheet
Models:
  • PSPA-1000-12
  • PSPA-1000-15
  • PSPA-1000-24
  • PSPA-1000-48
Manufacturer: Mean Well
Type: Enclosed Power Supplies

PSPA-1000 Series Features:

Current sharing up to 4000W (3+1)

Built-in cooling fan ON-OFF control

Protections: Short circuit / Overload / Over voltage/Over temperature

Other features:

  • Universal AC input / Full range
  • Built-in active PFC function
  • Forced air cooling by built-in DC fan
  • Built-in remote ON-OFF control
  • Built-in remote sense function
  • With DC OK Signal output
  • 5 years warranty
Wattage 960 960 1008 1008
Input Voltage 90-264VAC 90-264VAC 90-264VAC 90-264VAC
Output Current 80A 64A 42A 21A
Output Voltage 12 15 24 48
Output Voltage Options Single Single Single Single
DC output adjustment 11-14V 14-17V 22-28V 46-56V
Dimensions 170x 120x 93 170x 120x 93 170x 120x 93 170x 120x 93
Working Temperature -20-+70°C
Safety Standards UL62368-1, TUV EN62368-1, EAC TP TC 004 approved
EMC Standards Compliance to EN55032 (CISPR32) EN61000-3-2,3 Compliance to EN55024, EN61000-6-2, EN61000-4-2,3,4,5,6,8,11
