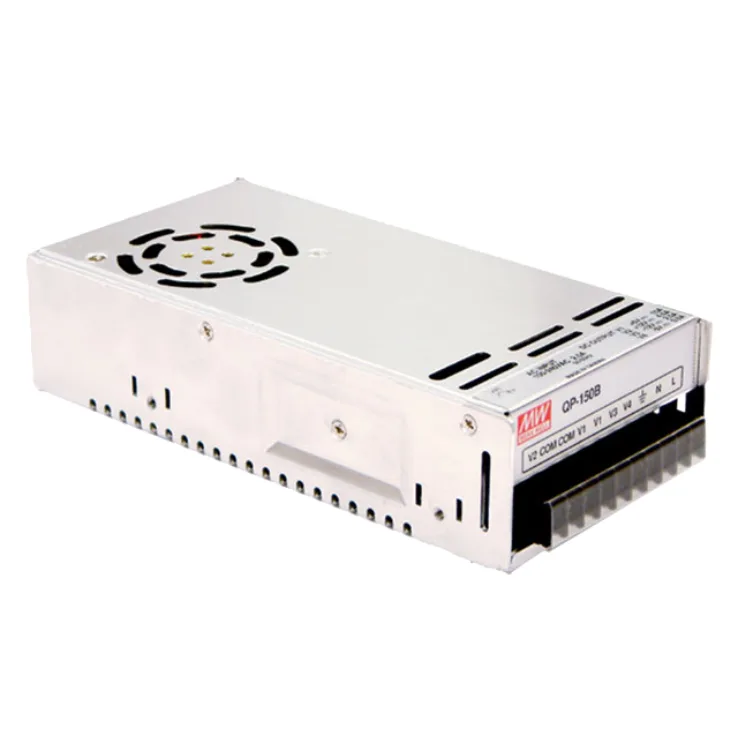

MEAN WELL QP-150 Series Enclosed Power Supplies 150W

Models:	QP-150-3A QP-150-3B QP-150-3C QP-150-3D QP-150B QP-150C QP-150D QP-150F
Manufacturer:	MEAN WELL
Type:	Enclosed Power Supplies

QP-150 Series Features:

Universal AC input / Full range

Protections: Short circuit/ Overload/ Over voltage/ Over Temperature

Other features:

PF>0.98@115VAC; >0.95@230VAC
Forced air cooling by built-in DC fan
Over temperature protection option
100% full load burn-in test
3 years warranty

Spec	QP-150-3A	QP-150-3B	QP-150-3C	QP-150-3D	QP-150B	QP-150C	QP-150D	QP-150F
Wattage	150	150	150	150	150	150	150	150
Input Voltage	90~264VAC; 127~370VDC	90~264VAC; 127~370VDC	90~264VAC; 127~370VDC	90~264VAC; 127~370VDC	90~264VAC; 127~370VDC	90~264VAC; 127~370VDC	90~264VAC; 127~370VDC	90~264VAC; 127~370VDC
Output Current	3.0~15 / 0.0~15 / 0.4~5.0 / 0.0~1.0	3.0~15 / 0.0~15 / 0.4~5.0 / 0.0~1.0	3.0~15 / 0.0~15 / 0.4~5.0 / 0.0~1.0	3.0~15 / 0.0~15 / 0.3~3.0 / 0.0~1.0	3.0~15 / 0.4~5.0 / 0.3~2.0 / 0.0~1.0	3.0~15 / 0.4~4.0 / 0.3~2.0 / 0.0~1.0	3.0~15 / 0.0~5.0 / 0.4~3.0 / 0.0~1.0	3.0~15 / 0.0~5.0 / 0.4~3.0 / 0.0~1.0
Output Voltage	5, 3.3, 12, -5	5, 3.3, 12, -12	5, 3.3, 15, -15	5, 3.3, 24, -12	5, 12, -12, -5	5, 15, -15, -5	5, 12, 24, -12	5, 15, 24, -15
Output Voltage Options	Quad	Quad	Quad	Quad	Quad	Quad	Quad	Quad
DC output adjustment	CH1: -5%~+10% rated output voltage (CH1&2 for QP100/150-3x, QP100/150-D/F)	CH1: -5%~+10% rated output voltage (CH1&2 for QP100/150-3x, QP100/150-D/F)	CH1: -5%~+10% rated output voltage (CH1&2 for QP100/150-3x, QP100/150-D/F)	CH1: -5%~+10% rated output voltage (CH1&2 for QP100/150-3x, QP100/150-D/F)	CH1: -5%~+10% rated output voltage (CH1&2 for QP100/150-3x, QP100/150-D/F)	CH1: -5%~+10% rated output voltage (CH1&2 for QP100/150-3x, QP100/150-D/F)	CH1: -5%~+10% rated output voltage (CH1&2 for QP100/150-3x, QP100/150-D/F)	CH1: -5%~+10% rated output voltage (CH1&2 for QP100/150-3x, QP100/150-D/F)
Dimensions	199 x 99 x 50	199 x 99 x 50	199 x 99 x 50	199 x 99 x 50	199 x 99 x 50	199 x 99 x 50	199 x 99 x 50	199 x 99 x 50
Working Temperature	-25~+70°C
Safety Standards	UL60950-1, TUV EN60950-1 approved
EMC Standards	EN55022 class B, EN61000-3-2,3 EN61000-4-2,3,4,5,6,8,11
