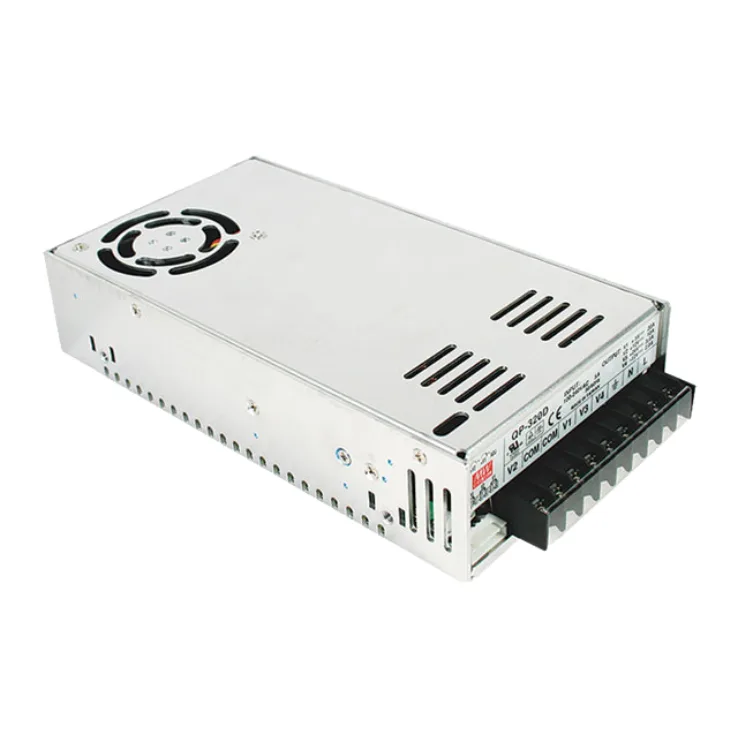

Mean Well QP-320 Series Enclosed Power Supplies 320W

Download Datasheet
Models:
  • QP-320D
  • QP-320F
Manufacturer: Mean Well
Type: Enclosed Power Supplies

QP-320 Series Features:

Universal AC input / Full range

Protections: Short circuit/ Overload/ Over voltage/ Over Temperature

Other features:

  • PF>0.98@115VAC; >0.95@230VAC
  • Over temperature protection option
  • Forced air cooling by built-in DC fan
  • 100% full load burn-in test
  • 3 years warranty
Wattage 320 320
Input Voltage 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC
Output Current 2.5~20, 0.0~10, 0.2~5.0, 0.2~2.0 2.5~20, 0.0~10, 0.2~5.0, 0.2~1.6
Output Voltage 5, 12, 24, -12 5, 15, 24, -15
Output Voltage Options Quad Quad
DC output adjustment CH1&2 -5%~+10% rated output voltage CH1&2 -5%~+10% rated output voltage
Dimensions 215 x 115 x 50 215 x 115 x 50
Working Temperature -20~+60B0C -10~+60B0C
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards EN55022 class B, EN6100-3-2,3, EN61000-4-2,3,4,5,6,8,11
