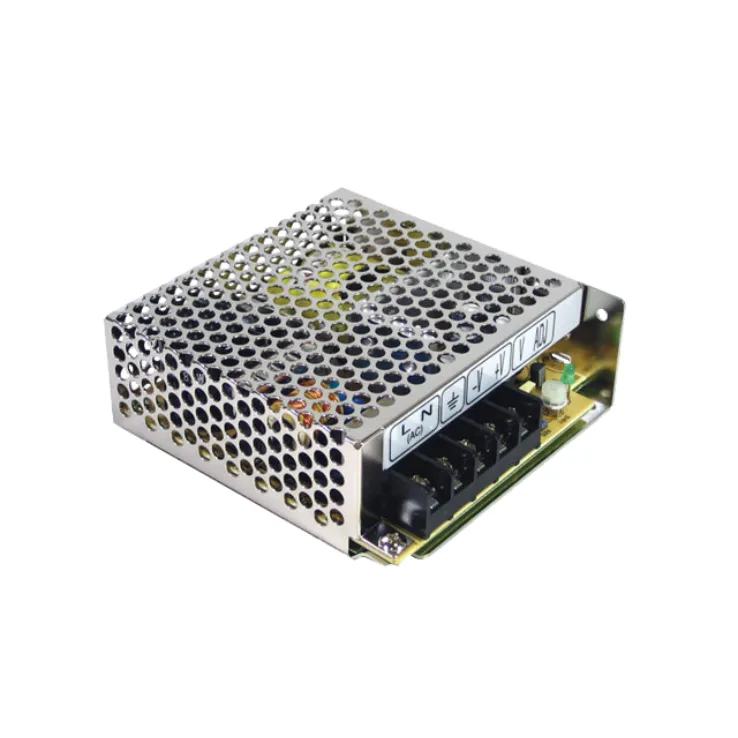

Mean Well RQ-50 Series Enclosed Power Supplies 50W

Download Datasheet
Models:
  • RQ-50B
  • RQ-50C
  • RQ-50D
Manufacturer: Mean Well
Type: Enclosed Power Supplies

RQ-50 Series Features:

Protections: Short circuit/ Overload/ Over voltage.

Other features:

  • LED indicator for power on
  • 100% full load burn-in test
  • Withstand 300VAC surge input for 5 seconds
  • High operating temperature up to 70°C
  • Withstand 5G vibration test
  • Uses 105°C long life electrolytic capacitors
  • Minature size, high power density
  • High efficiency, long life and high reliability
  • 3 years warranty
Wattage 50 50 50
Input Voltage 88~264 AC, 125~373 DC 88~264 AC, 125~373 DC 88~264 AC, 125~373 DC
Output Current 0~6, 0~1.5, 0~1, 0~1 0~6, 0~1.5, 0~1, 0~1, 0~1 0~6, 0~1.5, 0~1, 0~1
Output Voltage 5, 12, -5, -12 5, 15, -5, -15 5, 12, 24, -12
Output Voltage Options Quad Quad Quad
DC output adjustment CH1 -5%~+10% via pot. CH1 -5%~+10% via pot. CH1 -5%~+10% via pot.
Dimensions 99 x 97 x 36 99 x 97 x 36 99 x 97 x 36
Working Temperature -25B0C~+70B0C
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2, EN50082-2
