Mean Well Mean Well logo

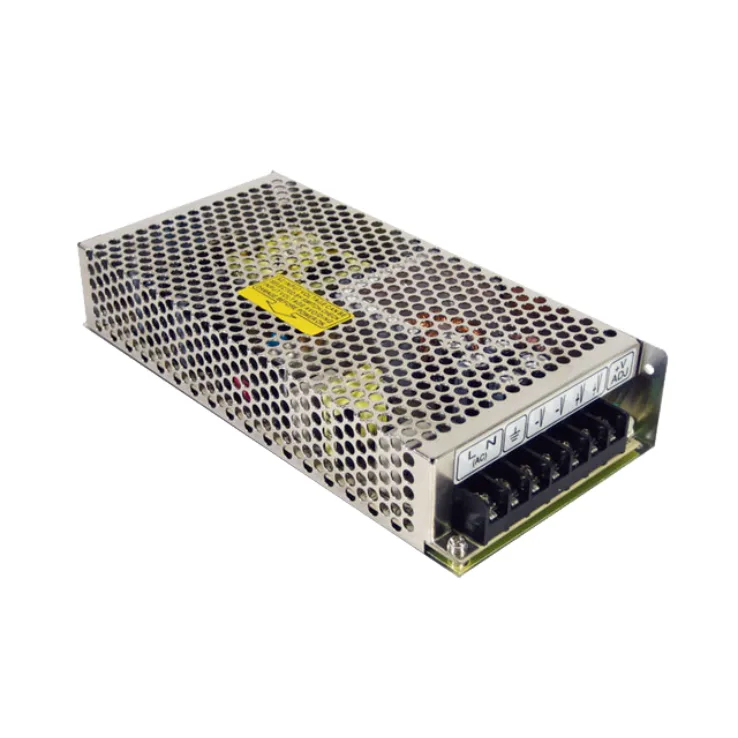

Mean Well RS-150 Series Enclosed Power Supplies 99–158W

Download Datasheet
Models:
  • RS-150-3.3
  • RS-150-5
  • RS-150-12
  • RS-150-15
  • RS-150-24
  • RS-150-48
Manufacturer: Mean Well
Type: Enclosed Power Supplies

RS-150 Series Features:

High efficiency, long life and high reliability

Miniature size, high power density

Protections: Short circuit/ Overload/ Over voltage.

Other features:

  • Meet EMS EN50082-2/EN61000-6-2 heavy industry level
  • 100% full load burn-in test
  • Withstand 300VAC surge input for 5 seconds
  • High operating temperature up to 70°C
  • Withstand 5G vibration test
  • Uses 105°C long life electrolytic capacitors
  • 3 years warranty
Wattage 99 130 150 150 156 158
Input Voltage 115 / 230 VAC by switch 115 / 230 VAC by switch 115 / 230 VAC by switch 115 / 230 VAC by switch 115 / 230 VAC by switch 115 / 230 VAC by switch
Output Current 0~30 0~26 0~12.5 0~10 0~6.5 0~3.3
Output Voltage 3.3 5 12 15 24 48
Output Voltage Options Single Single Single Single Single Single
DC output adjustment 3.2~3.5 4.75~5.5 11.4~13.2 14.25~16.5 22.8~26.4 45.6~52.8
Dimensions 199 x 98 x 38 199 x 98 x 38 199 x 98 x 38 199 x 98 x 38 199 x 98 x 38 199 x 98 x 38
Working Temperature -40~+70°C
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2, EN50082-2
