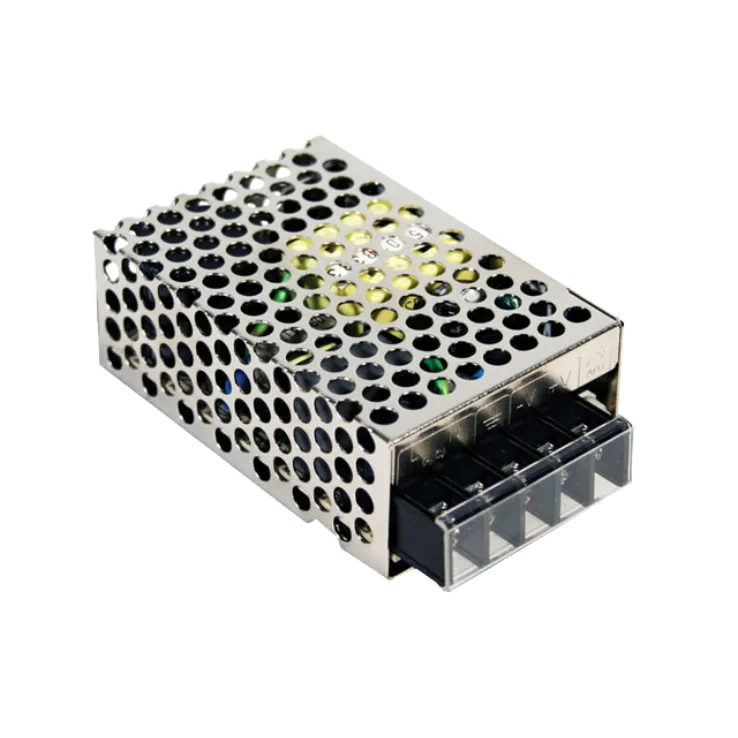

Mean Well RS-25 Series Enclosed Power Supplies 20–26W

Download Datasheet
Models:
  • RS-25-3.3
  • RS-25-5
  • RS-25-12
  • RS-25-15
  • RS-25-24
  • RS-25-48
Manufacturer: Mean Well
Type: Enclosed Power Supplies

RS-25 Series Features:

No Load power consumption <0.5W

Protections: Short circuit/ Overload/ Over voltage/Over temp.

Other features:

  • LED indicator for power on
  • 100% full load burn-in test
  • Withstand 300VAC surge input for 5 seconds
  • High operating temperature up to 70°C
  • Withstand 5G vibration test
  • Uses 105°C long life electrolytic capacitors
  • Miniature size, high power density
  • High efficiency, long life and high reliability
  • 3 years warranty
Wattage 20 25 25 25 26 25
Input Voltage 88~264 AC, 125~373 DC 88~264 AC, 125~373 DC 88~264 AC, 125~373 DC 88~264 AC, 125~373 DC 88~264 AC, 125~373 DC 88~264 AC, 125~373 DC
Output Current 0~6.0 0~5.0 0~2.1 0~1.7 0~1.1 0~0.57
Output Voltage 3.3 5 12 15 24 48
Output Voltage Options Single Single Single Single Single Single
DC output adjustment 2.85~3.6 4.75~5.5 10.8~13.2 13.5~16.5 22~27.6 42~54
Dimensions 78 x 51 x 28 78 x 51 x 28 78 x 51 x 28 78 x 51 x 28 78 x 51 x 28 78 x 51 x 28
Working Temperature -40~+70°C
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2
