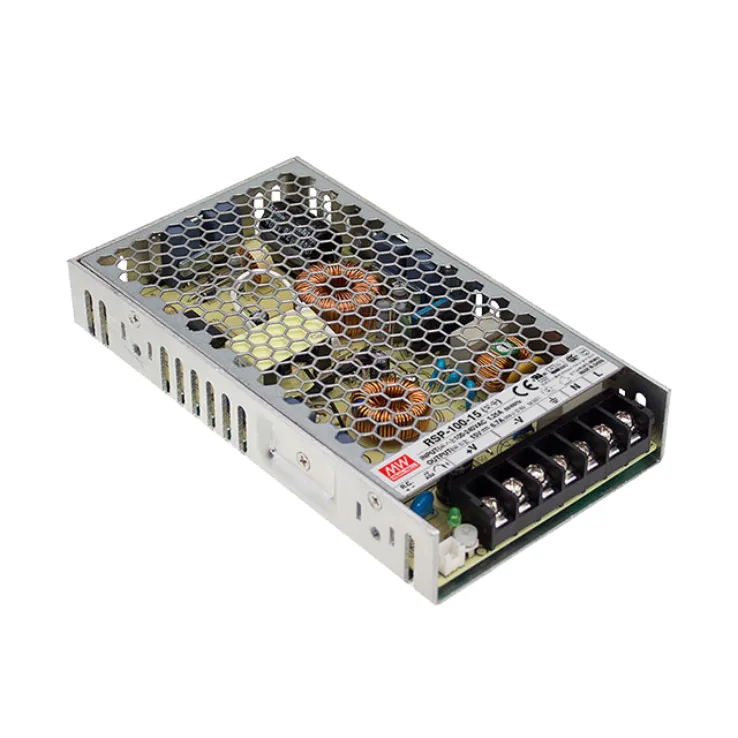

Mean Well RSP-100 Series Enclosed Power Supplies 66–103W

Download Datasheet
Models:
  • RSP-100-3.3
  • RSP-100-5
  • RSP-100-7.5
  • RSP-100-12
  • RSP-100-13.5
  • RSP-100-15
  • RSP-100-24
  • RSP-100-27
  • RSP-100-48
Manufacturer: Mean Well
Type: Enclosed Power Supplies

RSP-100 Series Features:

Universal AC input / Full range

Built-in active PFC function, PF>0.95

Protections: Short circuit / Overload / Over voltage / Over temperature

Other features:

  • Built-in constant current limiting circuit
  • Cooling by free air convection
  • Remote ON-OFF control
  • 1U low profile 30mm
  • LED indicator for power on
  • 100% full load burn-in test
  • 3 years warranty
Wattage 66 100 101 102 101 101 101 103 101
Input Voltage 85 ~ 264VAC 120 ~ 370VDC 85 ~ 264VAC 120 ~ 370VDC 85 ~ 264VAC 120 ~ 370VDC 85 ~ 264VAC 120 ~ 370VDC 85 ~ 264VAC 120 ~ 370VDC 85 ~ 264VAC 120 ~ 370VDC 85 ~ 264VAC 120 ~ 370VDC 85 ~ 264VAC 120 ~ 370VDC 85 ~ 264VAC 120 ~ 370VDC
Output Current 0~20A 0~20A 0~13.5A 0~8.5A 0~7.5A 0~6.7A 0~4.2A 0~3.8A 0~2.1A
Output Voltage 3.3 5 7.5 12 13.5 15 24 27 48
Output Voltage Options Single Single Single Single Single Single Single Single Single
DC output adjustment 3.14~3.63V 4.75 ~ 5.5V 7.13 ~ 8.25V 11.4 ~ 13.2V 12.8 ~ 14.9V 14.3 ~ 16.5V 22.8 ~ 26.4V 25.7 ~ 29.7V 45.6 ~ 52.8V
Dimensions 179x 99x 30 179x 99x 30 179x 99x 30 179x 99x 30 179x 99x 30 179x 99x 30 179x 99x 30 179x 99x 30 179x 99x 30
Working Temperature -25~+70°C (refer to output derating curve)
Safety Standards UL60950-1, TUV EN60950-1, CCC GB4943 approved; Design refer to EN60335-1
EMC Standards Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3, GB9254 class B, EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A
