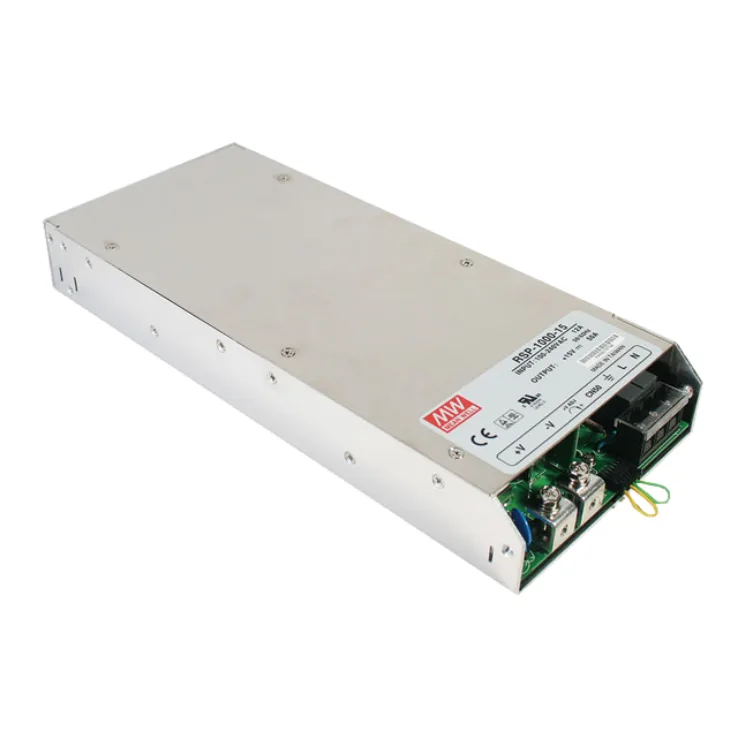

Mean Well RSP-1000 Series Enclosed Power Supplies 750–1008W

Download Datasheet
Models:
  • RSP-1000-12
  • RSP-1000-15
  • RSP-1000-24
  • RSP-1000-27
  • RSP-1000-48
Manufacturer: Mean Well
Type: Enclosed Power Supplies

RSP-1000 Series Features:

1U low profile

Universal AC input/ Full range

PF >0.98@115VAC; >0.95@230VAC

Protections: Short circuit/ Overload/ Over voltage/ Over Temp.

Other features:

  • High power density 10.7W/in³
  • Output voltage can be trimmed between 40~110% of the rated output voltage
  • DC OK signal output
  • Current sharing up to 4000W (3+1)
  • Built-in remote sense and ON/OFF control
  • Built-in 5v/0.5A auxiliary power
  • 5 years warranty
Wattage 750 750 960 999 1008
Input Voltage 90~264VAC; 127~370VDC 90~264VAC; 127~370VDC 90~264VAC; 127~370VDC 90~264VAC; 127~370VDC 90~264VAC; 127~370VDC
Output Current 0~60.0 0~50.0 0~40.0 0~37.0 0~21.0
Output Voltage 12 15 24 27 48
Output Voltage Options Single Single Single Single Single
DC output adjustment 10~13.5V 13.5~16.5V 20~26.4v 24~30V 43~55V
Dimensions 295 x 127 x 41 295 x 127 x 41 295 x 127 x 41 295 x 127 x 41 295 x 127 x 41
Working Temperature -25~+70B0C (refer to output derating curve) -30B0C~+70B0C (Refer to "Derating Curve")
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards Compliance to EN55022 (CISPR22), EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A
