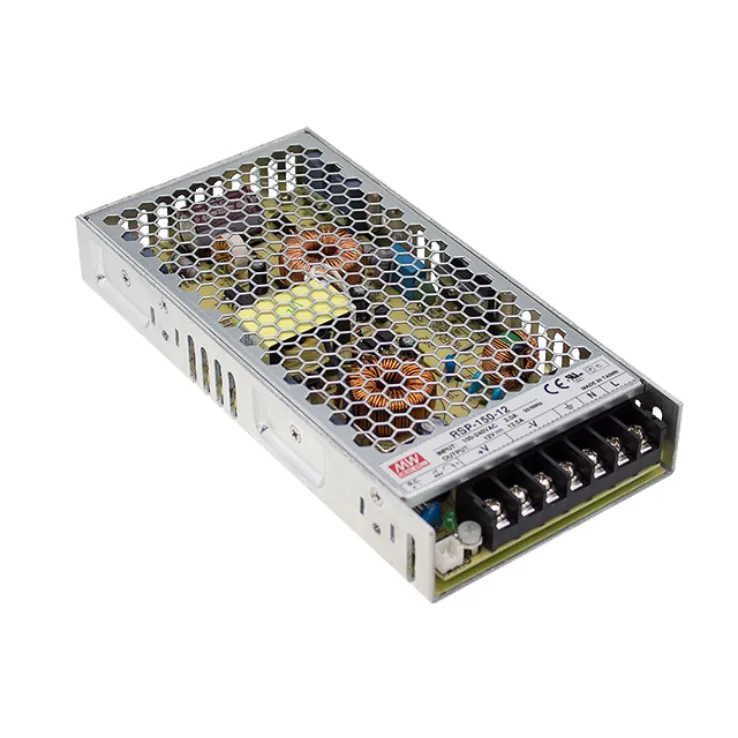

Mean Well RSP-150 Series Enclosed Power Supplies 99–150W

Download Datasheet
Models:
  • RSP-150-12
  • RSP-150-13.5
  • RSP-150-15
  • RSP-150-24
  • RSP-150-27
  • RSP-150-3.3
  • RSP-150-48
  • RSP-150-5
  • RSP-150-7.5
Manufacturer: Mean Well
Type: Enclosed Power Supplies

RSP-150 Series Features:

1U low profile 30mm

Built-in active PFC function

Protections: Short circuit / Overload / Over voltage / Over temperature

Other features:

  • Built-in constant current limiting circuit
  • Universal AC input / Full range
  • Cooling by free air convection
  • Remote ON-OFF control
  • LED indicator for power on
  • 100% full load burn-in test
  • 3 years warranty
Wattage 150 150 150 150 150 99 150 150 150
Input Voltage 85~264VAC, 120~370VDC 85~264VAC, 120~370VDC 85~264VAC, 120~370VDC 85~264VAC, 120~370VDC 85~264VAC, 120~370VDC 85~264VAC, 120~370VDC 85~264VAC, 120~370VDC 85~264VAC, 120~370VDC 85~264VAC, 120~370VDC
Output Current 0~12.5 0~11.2 0~10 0~6.3 0~5.6 0~30 0~3.2 0~30 0~20
Output Voltage 12 13.5 15 24 27 3.3 48 5 7.5
Output Voltage Options Single Single Single Single Single Single Single Single Single
DC output adjustment 11.4~13.2V 14.3~16.5V 22.8~26.4V 22.8~26.4V 25.7~29.7V 3.14 ~ 3.63V 45.6~52.8V 4.75~5.5V 7.13~8.25V
Dimensions 199x 99x 30 199x 99x 30 199x 99x 30 199x 99x 30 199x 99x 30 199x 99x 30 199x 99x 30 199x 99x 30 199x 99x 30
Working Temperature -30B0C~+70B0C (Refer to "Derating Curve")
Safety Standards UL60950-1, TUV EN60950-1, CCC GB4943 approved; Design refer to EN60335-1
EMC Standards Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3, GB9254 class B, EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A
