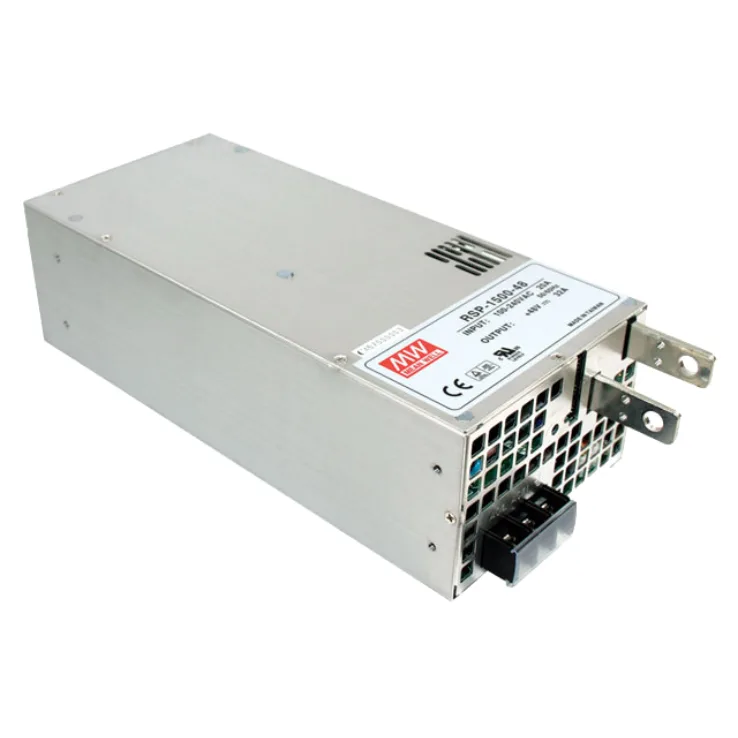

Mean Well RSP-1500 Series Enclosed Power Supplies 1200–1536W

Download Datasheet
Models:
  • RSP-1500-5
  • RSP-1500-12
  • RSP-1500-12CC
  • RSP-1500-15
  • RSP-1500-24
  • RSP-1500-24CC
  • RSP-1500-27
  • RSP-1500-27CC
  • RSP-1500-48
Manufacturer: Mean Well
Type: Enclosed Power Supplies

RSP-1500 Series Features:

Universal AC input/ Full range

PF >0.98@115VAC; >0.95@230VAC

Protections: Short circuit/ Overload/ Over voltage/ Over Temp.

Other features:

  • High power density 8.3W/in³
  • Built-in 12V / 0.1A auxiliary output
  • Alarm signal output
  • Using ZVS technology to reduce power dissipation
  • DC output voltage adjustment 70~100% by external resistor
  • Current sharing up to 6000W (3+1)
  • Built-in remote sense function and ON/OFF control
  • Forced air cooling by built-in DC fan
  • 3 years warranty
Wattage 1200 1500 1500 1500 1512 1512 1512 1512 1536
Input Voltage 90~264VAC; 127~370VDC 90~264VAC; 127~370VDC 90~264VAC; 127~370VDC 90~264VAC; 127~370VDC 90~264VAC; 127~370VDC 90~264VAC; 127~370VDC 90~264VAC; 127~370VDC 90~264VAC; 127~370VDC 90~264VAC; 127~370VDC
Output Current 0~240 0~125 0~125 0~100 0~63 0~63 0~56 0~56 0~32
Output Voltage 5 12 12 15 24 24 27 27 48
Output Voltage Options Single Single Single Single Single Single Single Single Single
DC output adjustment -30~+10% rated output voltage 10~13.5V 10~13.5V 13.5~16.5V 20~26.4V 20~26.4V 24~30V 24~30V 43~56V
Dimensions 278 x 127 x 83.5 278 x 127 x 83.5 278 x 127 x 83.5 278 x 127 x 83.5 278 x 127 x 83.5 278 x 127 x 83.5 278 x 127 x 83.5 278 x 127 x 83.5 278 x 127 x 83.5
Working Temperature -30~+70°C (Refer to "Derating Curve")
Safety Standards ULC60950-1, TUV EN60950-1 approved
EMC Standards EN55022 class B conducted, EN61000-3-2,3 EN61000-4-2,3,4,5,6,8,11
