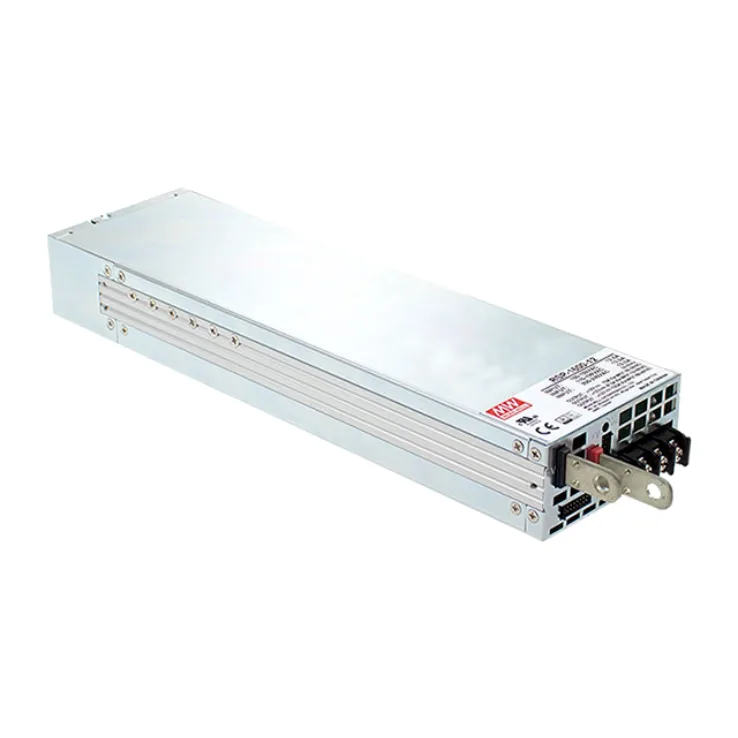

Mean Well RSP-1600 Series Enclosed Power Supplies 1500–1608W

Download Datasheet
Models:
  • RSP-1600-12
  • RSP-1600-24
  • RSP-1600-27
  • RSP-1600-36
  • RSP-1600-48
Manufacturer: Mean Well
Type: Enclosed Power Supplies

RSP-1600 Series Features:

Active current sharing up to 9600W (5+1)

Protections: Short circuit / Overload / Over voltage / Over Temperature

Other Features:

  • Built-in active PFC function
  • Universal AC Input / Full range
  • High efficiency up to 93%
  • Forced air cooling by built-in DC fan
  • Output voltage and constant current level programmable
  • Suitable for BF application with appropriate system consideration
  • Built-in remote ON-OFF control / remote sense / auxiliary power / DC OK signal / OTP alarm signal
  • Optional PMBus protocol
  • 5 years warranty
Wattage 1500 1608 1593 1602 1608
Input Voltage 90~264VAC 90~264VAC 90~264VAC 90~264VAC 90~264VAC
Output Current 0~125 0~67 0~59 0~44.5 0~33.5
Output Voltage 12 24 27 36 48
Output Voltage Options Single Single Single Single Single
DC output adjustment 11.5-15V 23.5-30V 26.5-33.5V 35.5-45V 47.5-58.8V
Dimensions 300 x 85 x 41 300 x 85 x 41 300 x 85 x 41 300 x 85 x 41 300 x 85 x 41
Working Temperature -30~+70°C
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards EN55022 (CISPR22), EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11 EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A
