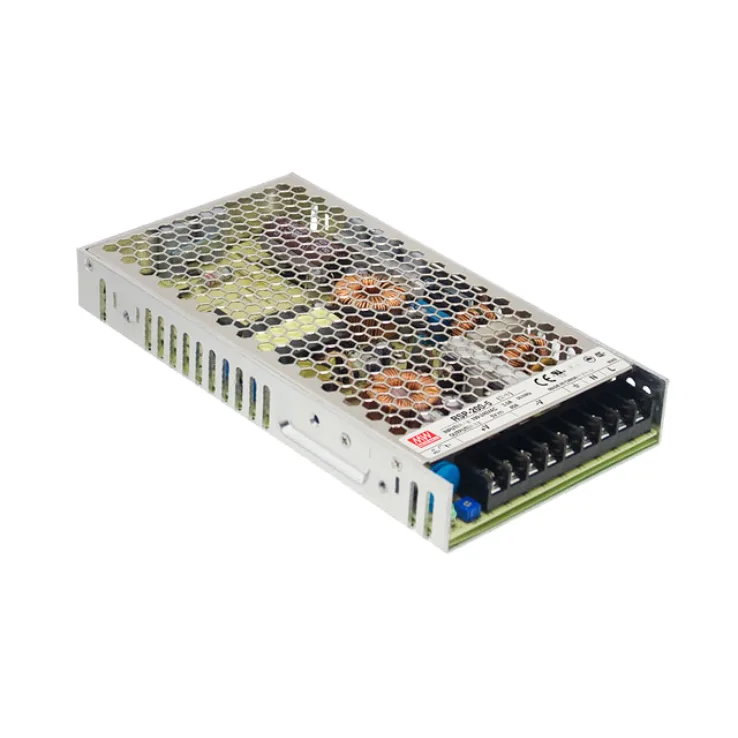

Mean Well RSP-200 Series Enclosed Power Supplies 100–200W

Download Datasheet
Models:
  • RSP-200-2.5
  • RSP-200-3.3
  • RSP-200-4
  • RSP-200-5
  • RSP-200-7.5
  • RSP-200-12
  • RSP-200-13.5
  • RSP-200-15
  • RSP-200-24
  • RSP-200-27
  • RSP-200-36
  • RSP-200-48
Manufacturer: Mean Well
Type: Enclosed Power Supplies

RSP-200 Series Features:

Universal AC input / Full range

Built-in active PFC function, PF>0.95

Protections: Short circuit / Overload / Over voltage / Over temperature

Other features:

  • Cooling by free air convection
  • 1U low profile 30mm
  • Optional conformal coating models (RSP-200- CC)
  • LED indicator for power on
  • 3 years warranty
Wattage 100 132 160 200 200 200 200 200 200 200 200 200
Input Voltage 88~264VAC 124~370VDC 88~264VAC 124~370VDC 88~264VAC 124~370VDC 88~264VAC 124~370VDC 88~264VAC 124~370VDC 88~264VAC 124~370VDC 88~264VAC 124~370VDC 88~264VAC 124~370VDC 88~264VAC 124~370VDC 88~264VAC 124~370VDC 88~264VAC 124~370VDC 88~264VAC 124~370VDC
Output Current 0~40 0~40 0~40 0~40 0~26.7 0~16.7 0~14.9 0~13.4 0~8.4 0~7.5 0~5.56 0~4.2
Output Voltage 2.5 3.3 4.2 5 7.5 12 13.5 2.5 24 27 36 48
Output Voltage Options Single Single Single Single Single Single Single Single Single Single Single Single
Dimensions 215x 115x 30 215x 115x 30 215x 115x 30 215x 115x 30 215x 115x 30 215x 115x 30 215x 115x 30 215x 115x 30 215x 115x 30 215x 115x 30 215x 115x 30 215x 115x 30
Working Temperature -30 ~ +70°C (Refer to "Derating Curve")
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A
