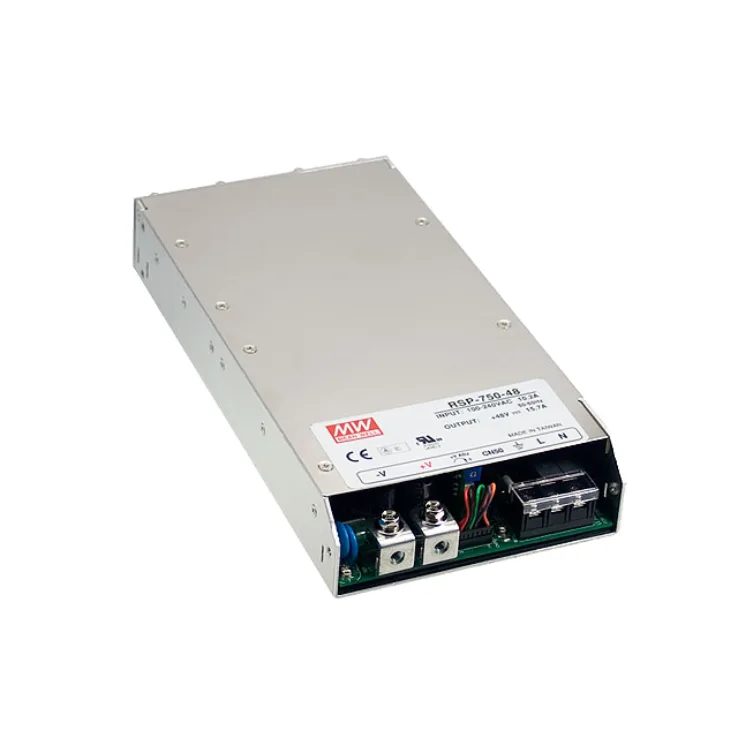

Mean Well RSP-750 Series Enclosed Power Supplies 500–750W

Download Datasheet
Models:
  • RSP-750-12
  • RSP-750-15
  • RSP-750-24
  • RSP-750-27
  • RSP-750-48
  • RSP-750-5
Manufacturer: Mean Well
Type: Enclosed Power Supplies

RSP-750 Series Features:

High efficiency up to 92%

Built-in 12V/0.1A auxiliary power

Built-in active PFC function, PF>0.97

Protections: Short circuit / Overload / Over voltage / Over temperature / Fan alarm

  • High power density 9.44w/inch3
  • Universal AC input / Full range
  • AC input active surge current limiting
  • Output voltage programmable from 40-110% by 2-5.5 VDC external control signal
  • Output current programmable from 40~110% by 2~5.5VDC external control signal
  • Forced air cooling by built-in DC with fan speed control function
  • DC OK Signal
  • 1U low profile 41mm
  • Built-in remote ON-OFF control
  • Built-in remote sense function
  • 3 years warranty
Wattage 750 750 750 750 750 500
Input Voltage 90~264VAC, 127VDC~370VDC 90~264VAC, 127VDC~370VDC 90~264VAC, 127VDC~370VDC 90~264VAC, 127VDC~370VDC 90~264VAC, 127VDC~370VDC 90~264VAC, 127VDC~370VDC
Output Current 0~62.5 0~50 0~31.3 0~27.8 0~15.7 0~100
Output Voltage 12 15 24 27 48 5
Output Voltage Options Single Single Single Single Single Single
DC output adjustment 10~13.5 13.5~16.5 20~26.4 24~30 43~55 4.75~5.5
Dimensions 250x 127x 41 250x 127x 41 250x 127x 41 250x 127x 41 250x 127x 41 250x 127x 41
Working Temperature -10~+60B0C (Refer to "Derating Curve") -40~+85B0C
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards Compliance to EN55022 (CISPR22), EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A
