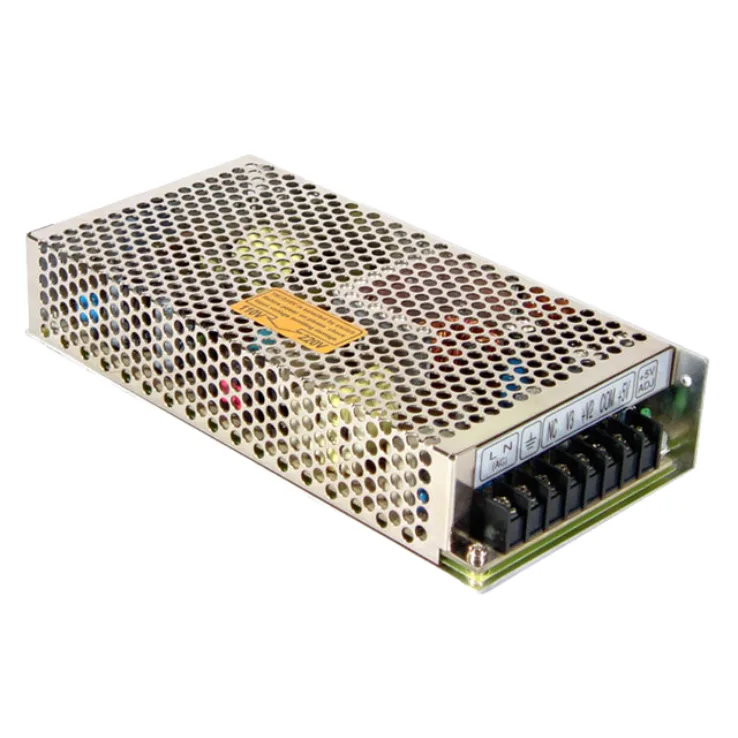

MEAN WELL RT-125 Series Enclosed Power Supplies 131–136W

Download Datasheet
Models:
  • RT-125A
  • RT-125B
  • RT-125C
  • RT-125D
Manufacturer: MEAN WELL
Type: Enclosed Power Supplies

RT-125 Series Features:

Features:

  • Universal AC input /Full range
  • Protections: short circuit / Overload / Over voltage
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • All using 105°C long life electrolytic capacitors
  • Withstand 300VAC surge input for 5 seconds
  • High operating temperature up to 70°C
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability
  • 3 years warranty
Wattage 131 132 132.5 136
Input Voltage 88~132 VAC 176~264VDC 88~132 VAC 176~264VDC 88~132 VAC 176~264VDC 88~132 VAC 176~264VDC
Output Current 12A, 5.5A, 1A 12A, 5A, 1A 10A, 4.5A, 1A 8A, 3A, 2A
Output Voltage 5V, 12V, -5V 5V , 12V, -12V 5V, 15V, -15V 5V, 24V, 12V
Dimensions 199*98*38mm 199*98*38mm 199*98*38mm 199*98*38mm
Working Temperature -25~+70°C
Safety Standards UL62368-1, TUV EN62368-1, EAC TP TC004 approved
EMC Standards Compliance to EN55032(CISPR32) Class B, EN61000-3-2, -3, EAC TP TC 020
