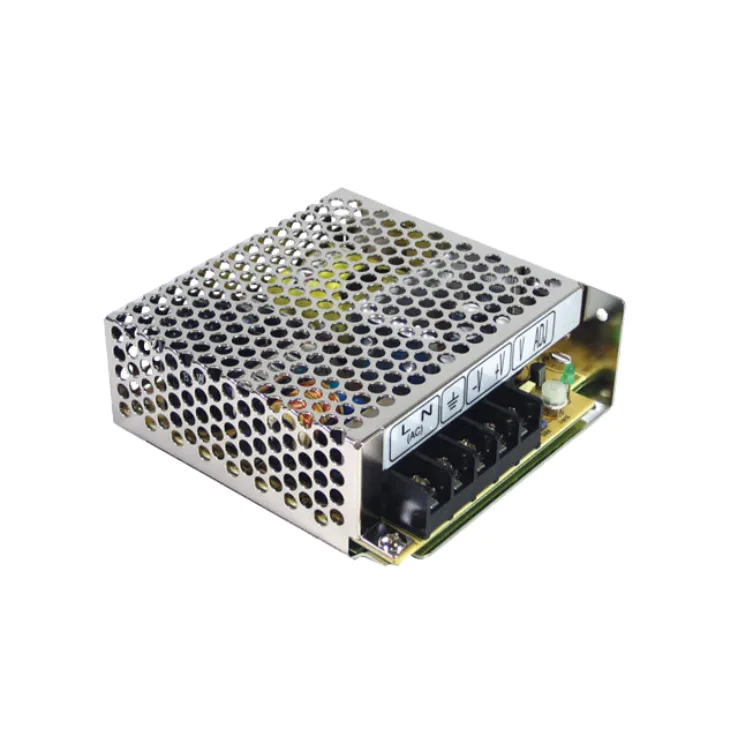

MEAN WELL RT-50 Series Enclosed Power Supplies 46.5–51W

Download Datasheet
Models:
  • RT-50A
  • RT-50B
  • RT-50C
  • RT-50D
Manufacturer: MEAN WELL
Type: Enclosed Power Supplies

RT-50 Series Features:

Features:

  • Universal AC input /Full range
  • Protections: short circuit / Overload / Over voltage
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • All using 105°C long life electrolytic capacitors
  • Withstand 300VAC surge input for 5 seconds
  • High operating temperature up to 70°C
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability
  • 3 years warranty
Wattage 46.5 50 50 51
Input Voltage 88~264 VAC 125~373VDC 88~264 VAC 125~373VDC 88~264 VAC 125~373VDC 88~264 VAC 125~373VDC
Output Current 4, 2, 0.5A 4A, 2A, 0.5A 4A, 1.5A, 0.5A 3A, 1A, 1A
Output Voltage 5, 12, -5V 5V, 12V, -12V 5V 15V, -15V 5V, 24V, 12V
Dimensions 99*97*36MM 99*97*36MM 99*97*36MM 99*97*36MM
Working Temperature -25~+70°C
Safety Standards UL62368-1, TUV EN62368-1, EAC TP TC004 approved
EMC Standards Compliance to EN55032(CISPR32) Class B, EN61000-3-2, -3, EAC TP TC 020
