MEAN WELL

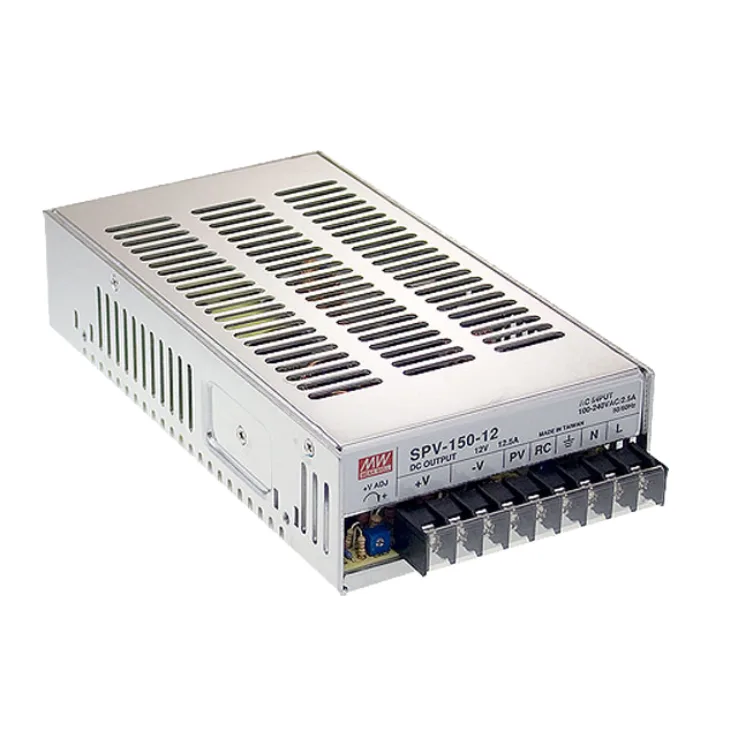

MEAN WELL SPV-150 Series Enclosed Power Supplies 150W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Enclosed Power Supplies |
SPV-150 Series Features:
Output voltage programmable from 20-110% by 1-5.5 VDC external control signal
Built-in active PFC function, PF>0.95
Protection: Short circuit / Overload/ Over voltage/ Over temperature
Other Features:
- Universal AC input/ Full range
- Cooling by free air convection
- 3 years warranty
| Wattage | 150 | 150 | 150 |
|---|---|---|---|
| Input Voltage | 88~264VAC, 124~370VDC | 88~264VAC, 124~370VDC | 88~264VAC, 124~370VDC |
| Output Current | 0~12.5A | 0~6.25A | 0~3.125A |
| Output Voltage | 12 | 24 | 48 |
| Output Voltage Options | Single | Single | Single |
| DC output adjustment | -15%~+10% rated output voltage | -15%~+10% rated output voltage | -15%~+10% rated output voltage |
| Dimensions | 215 x 115 x 50 | 215 x 115 x 50 | 215 x 115 x 50 |
| Working Temperature | -40~+85°C | ||
| Safety Standards | UL60950-1, TUV EN60950-1 approved | ||
| EMC Standards | EN55022 class B, EN61000- 4-2,3,4,5,6,8,11, EN61000-3-2,3, EN55024, light industry level, criteria A | ||
