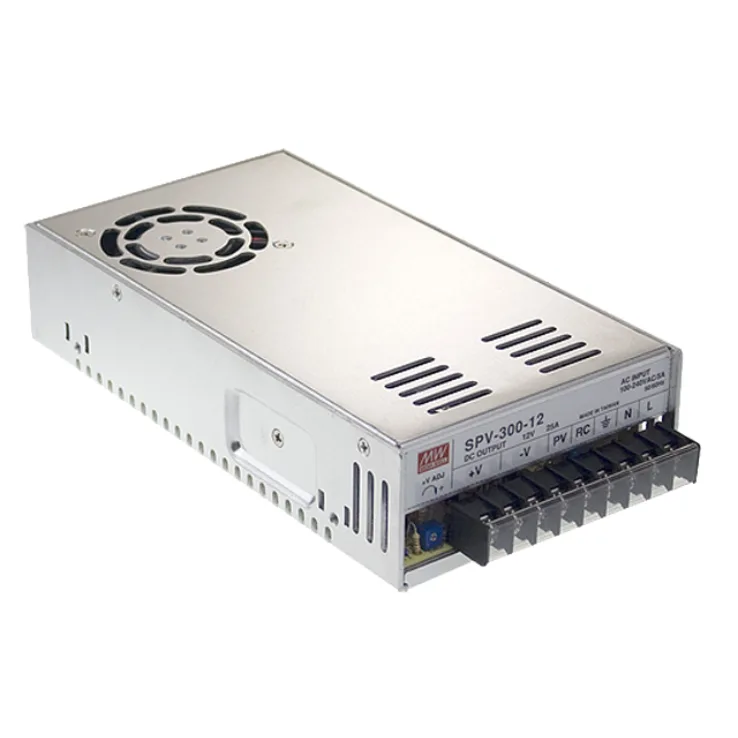

MEAN WELL SPV-300 Series Enclosed Power Supplies 300W

SPV-300 Series Features:

Output voltage programmable from 20-110% by 1-5.5 VDC external control signal

Built-in active PFC function, PF>0.95

Protection: Short circuit / Overload/ Over voltage/ Over temperature

Other Features:

Spec	SPV-300-12	SPV-300-24	SPV-300-48
Wattage	300	300	300
Input Voltage	88~264VAC, 124~370VDC	88~264VAC, 124~370VDC	88~264VAC, 124~370VDC
Output Current	0~25A	0~12.5A	0~6.25A
Output Voltage	12	24	48
Output Voltage Options	Single	Single	Single
DC output adjustment	-15%~+10% rated output voltage	-15%~+10% rated output voltage	-15%~+10% rated output voltage
Dimensions	215 x 115 x 50	215 x 115 x 50	215 x 115 x 50
Working Temperature	0~+40°C @ 100% load, 60°C @ 50% load
Safety Standards	UL60950-1, TUV EN60950-1 approved
EMC Standards	EN55022 class B, EN61000- 4-2,3,4,5,6,8,11, EN61000-3-2,3, EN55024, light industry level, criteria A
