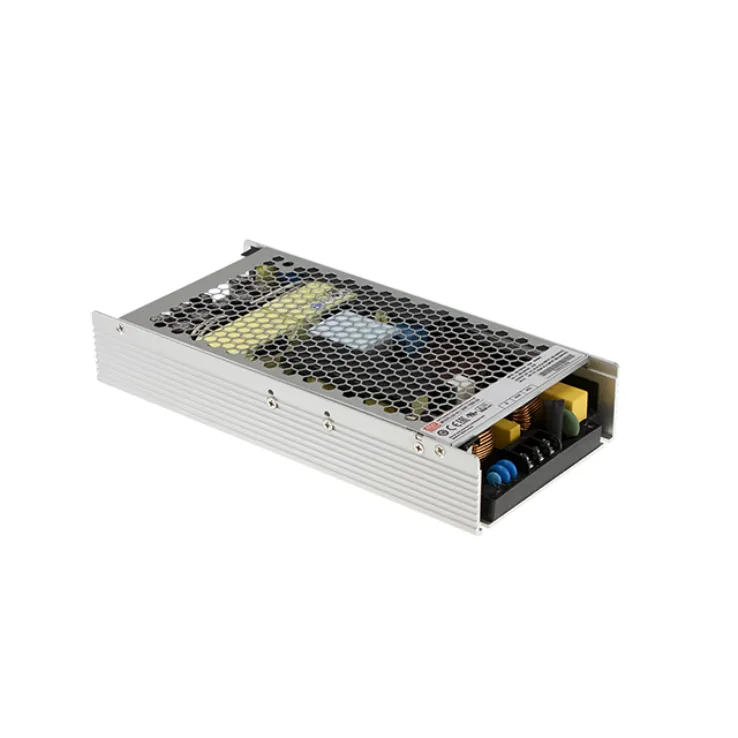

Mean Well UHP-1000 Series Enclosed Power Supplies 960–1008W

Download Datasheet
Models:
  • UHP-1000-12
  • UHP-1000-24
  • UHP-1000-36
  • UHP-1000-48
Manufacturer: Mean Well
Type: Enclosed Power Supplies

UHP-1000 Series Features:

Slim and Low profile (41mm)

Withstand 300VAC surge input for 5 seconds

Other features:

  • Fanless and conduction-cooled design
  • -30 ~ +70B0C working temperature
  • Protection: Short circuit/Overload/Over voltage/Over temperature
  • Operating altitude up to 5000 meter
  • 5 years warranty
Wattage 960 1008 1008 1008
Input Voltage 90-264VAC, 250-370VDC 90-264VAC, 250-370VDC 90-264VAC, 250-370VDC 90-264VAC, 250-370VDC
Output Current 80A 42A 28A 21A
Output Voltage 12-14.4V 24-28.8V 36-43.2V 48-57.6V
Output Voltage Options Single Single Single Single
DC output adjustment N/A N/A N/A N/A
Dimensions 240x 115x 41 240x 115x 41 240x 115x 41 240x 115x 41
Working Temperature -30 - +70
Safety Standards UL62368-1, TUV EN62368-1, EAC TP TC 004 approved; Design refer to EN61558-1, EN60335-1
EMC Standards EN55032 (CISPR32), EN61000-3-2, EN61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-6-2, EN61000-4-6, EN61000-4-8, EN61000-4-11
