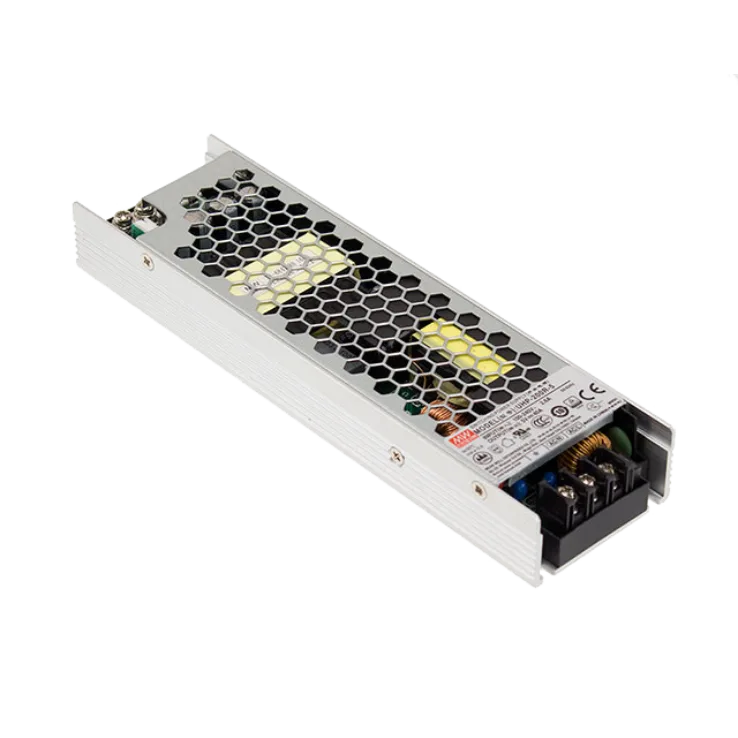

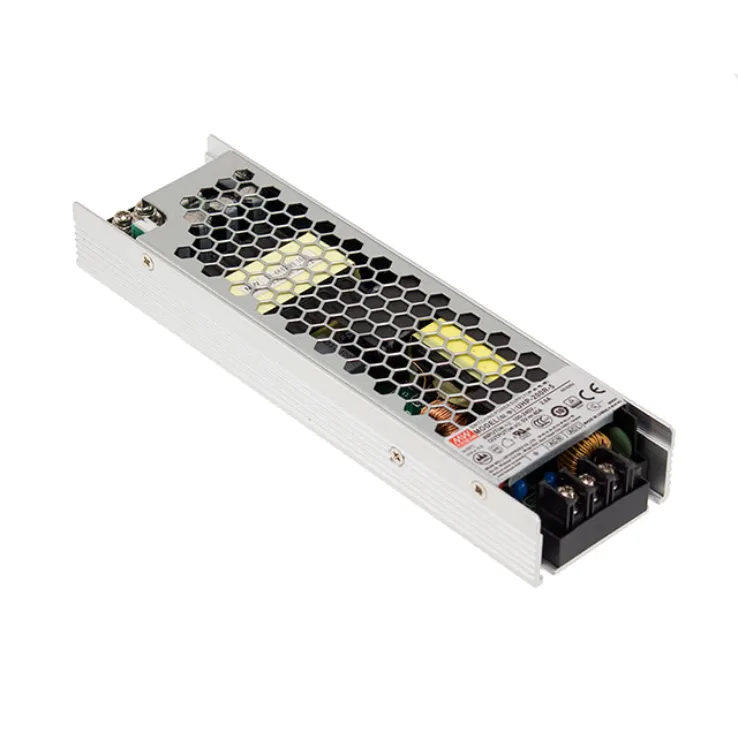

Mean Well UHP-200 Series Enclosed Power Supplies 132–201.6W

Download Datasheet
Models:
  • UHP-200-12
  • UHP-200-15
  • UHP-200-24
  • UHP-200-3.3
  • UHP-200-36
  • UHP-200-4.2
  • UHP-200-48
  • UHP-200-5
  • UHP-200R-12
  • UHP-200R-15
  • UHP-200R-24
  • UHP-200R-3.3
  • UHP-200R-36
  • UHP-200R-4.2
  • UHP-200R-48
  • UHP-200R-5
Manufacturer: Mean Well
Type: Enclosed Power Supplies

UHP-200 Series Features:

Slim and Low profile (26mm)

Fanless design, 200W convection

Protections:Short circuit / Overload/ Over voltage/ Over Temperature

Other features:

  • Withstand 300VAC surge input for 5 seconds
  • Built-in active PFC function
  • 150% peak load capability (100ms)
  • -30-+70B0C working temperature
  • Operating altitude up to 5000 meter
  • LED Indicator for power on
  • 3 years warranty
Wattage 200.4 201 201.6 132 201.6 168 201.6 200 200.4 201 201.6 132 201.6 168 201.6 200
Input Voltage 90-264VAC 127-370VDC 90-264VAC 127-370VDC 90-264VAC 127-370VDC 90-264VAC 127-370VDC 90-264VAC 127-370VDC 90-264VAC 127-370VDC 90-264VAC 127-370VDC 90-264VAC 127-370VDC 90-264VAC 127-370VDC 90-264VAC 127-370VDC 90-264VAC 127-370VDC 90-264VAC 127-370VDC 90-264VAC 127-370VDC 90-264VAC 127-370VDC 90-264VAC 127-370VDC 90-264VAC 127-370VDC
Output Current 16.7A 13.4A 8.4A 40A 5.6A 40A 4.2A 40A 16.7A 13.4A 8.4A 40A 5.6A 40A 4.2A 40A
Output Voltage 12 15 24 3.3 36 4.2 48 5 12 15 24 3.3 36 4.2 48 5
Output Voltage Options Single Single Single Single Single Single Single Single Single Single Single Single Single Single Single Single
DC output adjustment 11.4-12.6V 14.3-15.8V 22.8-25.2V 3.2-3.5V 34.2-37.8V 3.6-4.4V 45.6-50.4V 4.5-5.5V 11.4-12.6V 14.3-15.8V 22.8-25.2V 3.2-3.5V 34.2-37.8V 3.6-4.4V 45.6-50.4V 4.5-5.5V
Dimensions 194x 55x 26 194x 55x 26 194x 55x 26 194x 55x 26 194x 55x 26 194x 55x 26 194x 55x 26 194x 55x 26 194x 55x 26 194x 55x 26 194x 55x 26 194x 55x 26 194x 55x 26 194x 55x 26 194x 55x 26 194x 55x 26
Working Temperature -30B0C-+70B0C
Safety Standards UL60950-1, TUV EN60950-1, EN60335-1, CCC GB4943 approved
EMC Standards Compliance to EN55032, GB9254, Class B, EN55014, EN61000-3-2, - 3 Compliance to EN61000-4-2,3,4,5,6,8,11; EN61000-6-2 (EN50082-2), heavy industry level, criteria A
