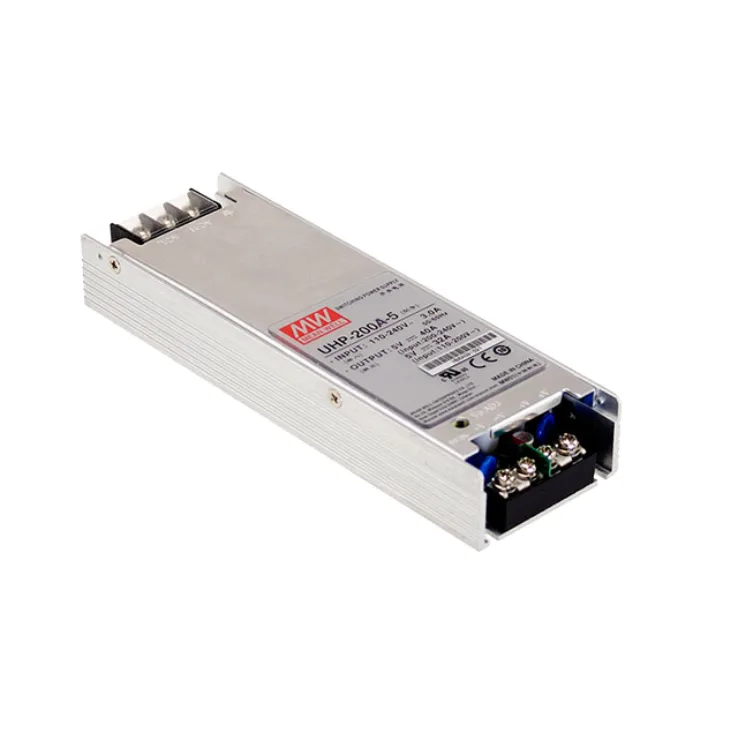

Mean Well UHP-200A Series Enclosed Power Supplies 168–200W

Download Datasheet
Models:
  • UHP-200A-4.2
  • UHP-200A-4.5
  • UHP-200A-5
Manufacturer: Mean Well
Type: Enclosed Power Supplies

UHP-200A Series Features:

Withstand 300VAC surge input for 5 seconds

Low leakage current <1.0mA

Protections:Short circuit / Overload/ Over voltage/ Over Temperature

Other features:

  • Universal AC input / Full range
  • Low profile : 26mm
  • Built-in active PFC function
  • Fanless design, cooling by free air convection
  • LED indicator for power on
  • IP65 design, optional IP68 rated model available
  • 3 years warranty
Wattage 168 180 200
Input Voltage 100-264VAC 141-370VDC 100-264VAC 141-370VDC 100-264VAC 141-370VDC
Output Current 40A 40A 40A
Output Voltage 4.2 4.5 5
Output Voltage Options Single Single Single
DC output adjustment 4.0-4.4V 4.3-4.7V 4.7-5.3V
Dimensions 167x 55x 26 167x 55x 26 167x 55x 26
Working Temperature -30-+50°C
Safety Standards UL60950-1, TUV EN60950-1, CCC GB4943 approved
EMC Standards Compliance to EN55022 (CISPR22) GB9254, Class B, EN61000-3-2,-3, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level (surge 4KV)
