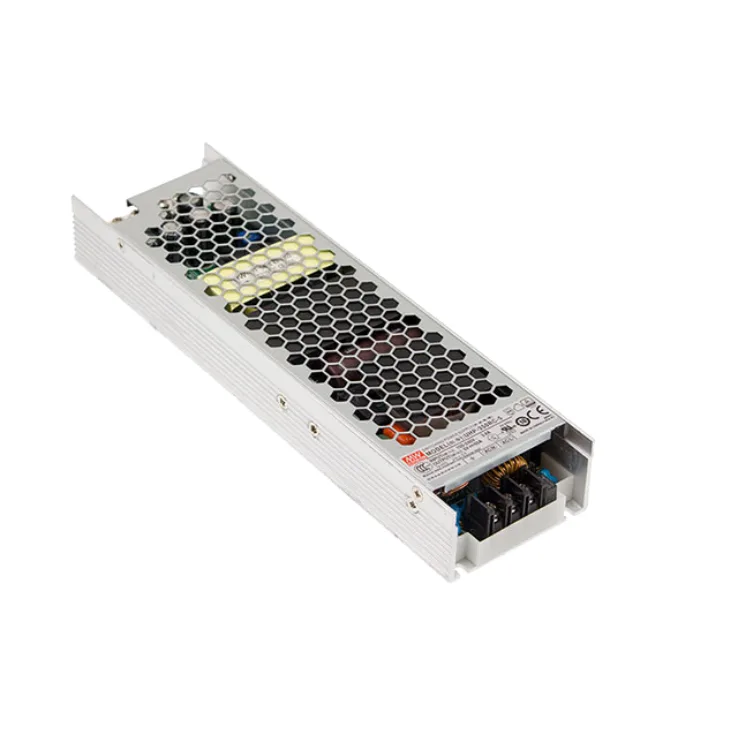

MEAN WELL UHP-350 Series Enclosed Power Supplies 198–351W

Models:	UHP-350-3.3 UHP-350-4.2 UHP-350-5 UHP-350-12 UHP-350-15 UHP-350-24 UHP-350-36 UHP-350-48 UHP-350R-3.3 UHP-350R-4.2 UHP-350R-5 UHP-350R-12 UHP-350R-15 UHP-350R-24 UHP-350R-36 UHP-350R-48 UHP-350-55
Manufacturer:	MEAN WELL
Type:	Enclosed Power Supplies

UHP-350 Series Features:

Slim and Low profile (26mm)

Fanless design, 200W convection

Protections:Short circuit / Overload/ Over voltage/ Over Temperature

Other features:

Withstand 300VAC surge input for 5 seconds
Built-in active PFC function
150% peak load capability (100ms)
-30-+70°C working temperature
Operating altitude up to 5000 meter
LED Indicator for power on
3 years warranty

Wattage

198

252

300

350.4

351

350.4

351

350.4

198

252

300

350.4

351

350.4

351

350.4

350

Input Voltage

90-264VAC 127-370VDC

90 ~ 264VAC 127 ~ 370VDC

Output Current

60A

29.2A

23.4A

14.6A

9.75A

7.3A

60A

29.2A

23.4A

14.6A

9.75A

7.3A

6.3A

Output Voltage

3.3

4.2

3.3

4.2

Output Voltage Options

Single

DC output adjustment

3.2-3.5V

3.6-4.4V

4.5-5.5V

11.4-12.6V

14.3-15.8V

22.8-25.2V

34.2-37.8V

45.6-50.4V

3.2-3.5V

3.6-4.4V

4.5-5.5V

11.4-12.6V

14.3-15.8V

22.8-25.2V

34.2-37.8V

45.6-50.4V

Dimensions

220x 62x 31

220*62*31mm (L*W*H)

Working Temperature

-30 - +70°C

-30 ~ +70℃(Refer to “Derating Curve")

Safety Standards

UL60950-1, TUV EN60950-1, EN60335-1, CCC GB4943 approved

UL 62368-1,TUV BS EN/EN62368-1,BS EN/EN60335-1(Except for 55V),BS EN/EN61558-1, BS EN/EN61558-2-16,GB 4943.1,BSMI CNS15598-1,EAC TP TC 004,BIS IS13252(Part1)/IEC60950-1 (except for 4.2V/15V/48V/55V) approved,Design refer to AS/NZS 61558.1/2.16,AS/NZS 62368.1

EMC Standards

Compliance to EN55032, GB9254, Class B, EN55014, EN61000-3-2, - 3 Compliance to EN61000-4-2,3,4,5,6,8,11; EN61000-6-2 (EN50082-2), heavy industry level, criteria A

Compliance to BS EN/EN55032,GB17625.1,GB/T 9254.1,Class B, BS EN/EN55014,BS EN/EN61000-3-2,-3, BSMI CNS15936, EAC TP TC 020, Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11;BS EN/EN61000-6-2 (BS EN/EN50082-2),BS EN/EN55035, heavy industry level ,EAC TP TC 020
