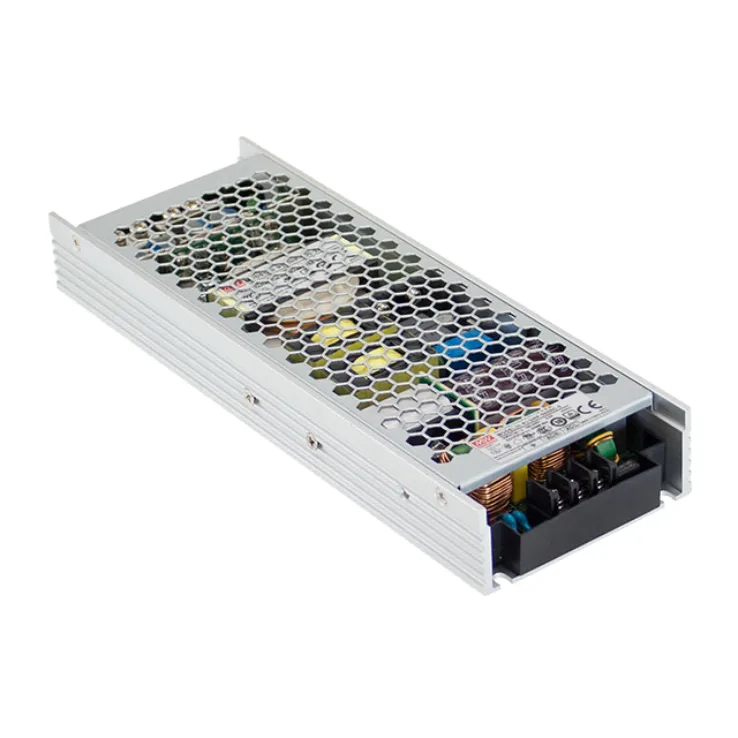

Mean Well UHP-500 Series Enclosed Power Supplies 336–501.6W

Download Datasheet
Models:
  • UHP-500-12
  • UHP-500-15
  • UHP-500-24
  • UHP-500-36
  • UHP-500-4.2
  • UHP-500-48
  • UHP-500-5
  • UHP-500R-12
  • UHP-500R-15
  • UHP-500R-24
  • UHP-500R-36
  • UHP-500R-4.2
  • UHP-500R-48
  • UHP-500R-5
Manufacturer: Mean Well
Type: Enclosed Power Supplies

UHP-500 Series Features:

Slim and Low profile (31mm)

Fanless design, 500W convection

Protections:Short circuit / Overload/ Over voltage/ Over Temperature

Other features:

  • Withstand 300VAC surge input for 5 seconds
  • Built-in active PFC function
  • 150% peak load capability (100ms)
  • -20-+70B0C working temperature
  • Operating altitude up to 5000 meter
  • LED Indicator for power on
  • 3 years warranty
Wattage 500.4 501 501.6 500.4 336 501.6 400 500.4 501 501.6 500.4 336 501.6 400
Input Voltage 90-264VAC 127-370VDC 90-264VAC 127-370VDC 90-264VAC 127-370VDC 90-264VAC 127-370VDC 90-264VAC 127-370VDC 90-264VAC 127-370VDC 90-264VAC 127-370VDC 90-264VAC 127-370VDC 90-264VAC 127-370VDC 90-264VAC 127-370VDC 90-264VAC 127-370VDC 90-264VAC 127-370VDC 90-264VAC 127-370VDC 90-264VAC 127-370VDC
Output Current 41.7A 33.4A 20.9A 13.9A 80A 10.45A 80A 41.7A 33.4A 20.9A 13.9A 80A 10.45A 80A
Output Voltage 12 15 24 36 4.2 48 5 12 15 24 36 4.2 48 5
Output Voltage Options Single Single Single Single Single Single Single Single Single Single Single Single Single Single
DC output adjustment 11.4-12.6V 14.3-15.8V 22.8-25.2V 34.2-37.8V 3.6-4.4V 45.6-50.4V 4.5-5.5V 11.4-12.6V 14.3-15.8V 22.8-25.2V 34.2-37.8V 3.6-4.4V 45.6-50.4V 4.5-5.5V
Dimensions 232x 81x 31 232x 81x 31 232x 81x 31 232x 81x 31 232x 81x 31 232x 81x 31 232x 81x 31 232x 81x 31 232x 81x 31 232x 81x 31 232x 81x 31 232x 81x 31 232x 81x 31 232x 81x 31
Working Temperature -20B0C-+70B0C
Safety Standards UL60950-1, TUV EN60950-1, CCC GB4943 approved; Design refer to EN60335-1, EN61558-2-16
EMC Standards Compliance to EN55032, GB/T9254, Class B, EN61000-3-2,-3 Compliance to EN61000-4-2,3,4,5,6,8,11; EN61000-6-2 (EN50082 ), Heavy industry level, Criteria A
