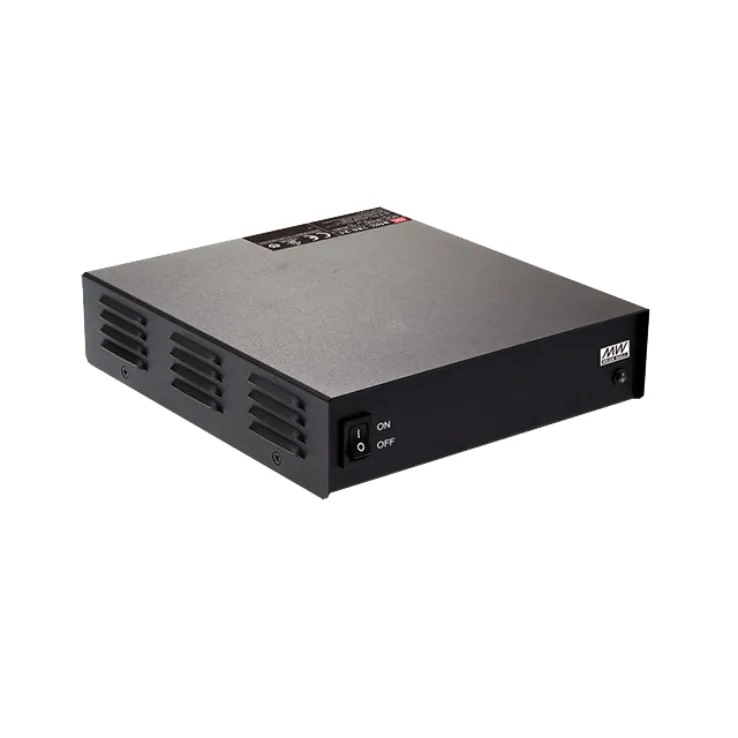

Mean Well ENP-240 Series External Power Supplies 240.1–243W

Download Datasheet
Models:
  • ENP-240-12
  • ENP-240-24
  • ENP-240-48
Manufacturer: Mean Well
Type: External Power Supplies

ENP-240 Series Features:

Built-in active PFC function

Protections: Short circuit / Overload / Over voltage / Over Temperature

Other Features:

  • Energy efficiency Level VI
  • Universal AC Input / Full range
  • No load power consumption <0.15W
  • Comply with EISA 2007/DoE, NRCan and EU ErP
  • 125% peak load capability
  • Fanless design, cooling by free air convection
  • 3 years warranty
Wattage 240.1 240.1 243
Input Voltage 90~264VAC 90~264VAC 90~264VAC
Output Current 13.8 27.6 55.2
Output Voltage 13.8 27.6 55.2
Output Voltage Options Single Single Single
DC output adjustment 11.5-15V 23.5-30V 47.5-58.8V
Dimensions 192x 178x 45.5 192x 178x 45.5 192x 178x 45.5
Working Temperature -30~+70°C
Safety Standards IEC60950-1, UL60950-1 approved
EMC Standards Compliance to EN55032 (CISPR32) class B, EN61000-3-2,-3, FCC PART 15 / CISPR22 class B Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024.
