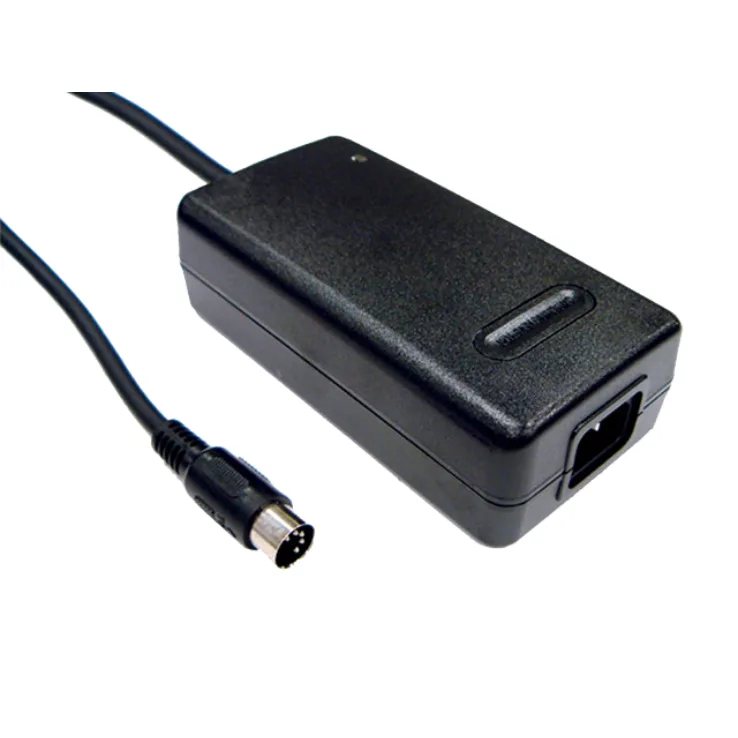

Mean Well GP50A series External Power Supplies 46.5–71.2W

Download Datasheet
Models:
  • 123
  • GP50A13D-R1B
  • GP50A14E-R1B
  • GP50A58F-R1B(option)
Manufacturer: Mean Well
Type: External Power Supplies

GP50A series Features:

GP50A is a 50W triple-output desktop type green adaptor series, complying with the mandatory energy saving standard USA EISA 2007/DoE (Level VI). Adopting Class I design and utilizing the standard inlet IEC320-C14, it is designed with FG and uses the 94V-0 flame retardant plastic enclosure, which can effectively prevent electric shock hazards.

Features:

  • Universal AC input/full range
  • 3 pole AC inlet IEC320-C14, Class I power unit
  • No load power consumption <0.3W
  • Energy efficiency level VI
  • Comply with EISA 2007/DoE
  • Protections: short circuit/ overload/ over voltage
  • -20~+70°C working temperature
  • LED indicator for power on
  • Dual output available (optional)
  • ± 16V / +48V also available for video system (optional, order NO. : GP50A58F-R1B)
  • 3 years warranty
Wattage 46.5 50 50 71.2
Input Voltage 90~264VAC 135~370VDC 90~264VAC 135~370VDC 90~264VAC 135~370VDC 90~264VAC 135~370VDC
Output Current 4A, 2A, 0.5A 4A, 2A, 0.5A 4A, 1.5A, 0.5A 2A, 0.15A, 2A
DC output adjustment 5V, 12V, -5V 5V, 12V, -12V 5V, 15V, -15V 16V, 48V, -16V
Dimensions 146*75.5*43mm 146*75.5*43mm 146*75.5*43mm 146*75.5*43mm
Working Temperature -20~+70°C
Safety Standards IEC62368-2, UL62368-1, CSA22.2, EN62368-1(Except for GP50A58F-R1B), EAC TP TC 004 approved
EMC Standards EN55032(CISPR32), FCC PART 15/CISPR22, CANICES-3(B)NMB-3)B), EN61000-3-2, EN61000-3-3
