MEAN WELL

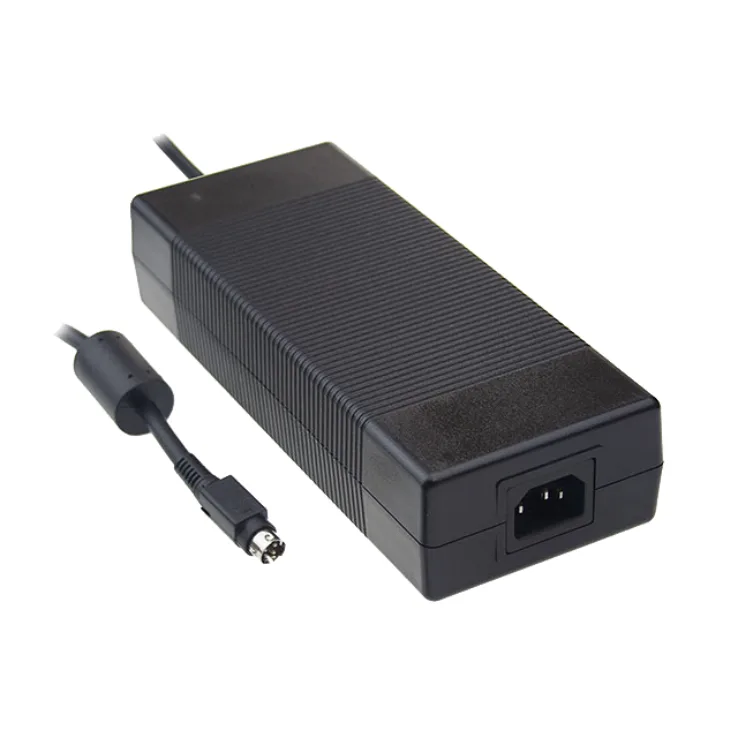

MEAN WELL GST220A Series External Power Supplies 180–221W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | External Power Supplies |
GST220A Series Features:
Fanless design with -30~+70°C working temperature
No load power consumption <0.15W
Protections: Short circuit / Overload / Over voltage
Other features:
- Universal AC input/full range
- 3 pole AC inlet IEC320-C14
- Built-in active PFC function
- Energy efficiency level VI
- Fully enclosed plastic case
- Class I power (without earth pin)
- Meet EISA 2007
- 3 years warranty
| Wattage | 180 | 201 | 220 | 221 | 221 |
|---|---|---|---|---|---|
| Input Voltage | 85-264VAC | 85-264VAC | 85-264VAC | 85-264VAC | 85-264VAC |
| Output Current | 15A | 13.4A | 11A | 9.2A | 4.6A |
| Output Voltage | 12 | 15 | 20 | 24 | 48 |
| Output Voltage Options | Single | Single | Single | Single | Single |
| DC output adjustment | 120-370V | 120-370V | 120-370V | 120-370V | 120-370V |
| Dimensions | 210x 85x 46 | 210x 85x 46 | 210x 85x 46 | 210x 85x 46 | 210x 85x 46 |
| Working Temperature | -30 -+70°C | ||||
| Safety Standards | UL60950-1, CSA C22.2, TUV EN60950-1, BMSI CNS14336, CCC GB4943, PSE J60950-1, AS/NZS 60950.1 approved | ||||
| EMC Standards | Compliance to EN55022 class B, EN61000-3-2,3, FCC PART 15 / CISPR22 class B, CAN ICES-3(B)/NWB-3(B),CNS13438 class B, GB9254, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11 light industry level, criteria A | ||||
