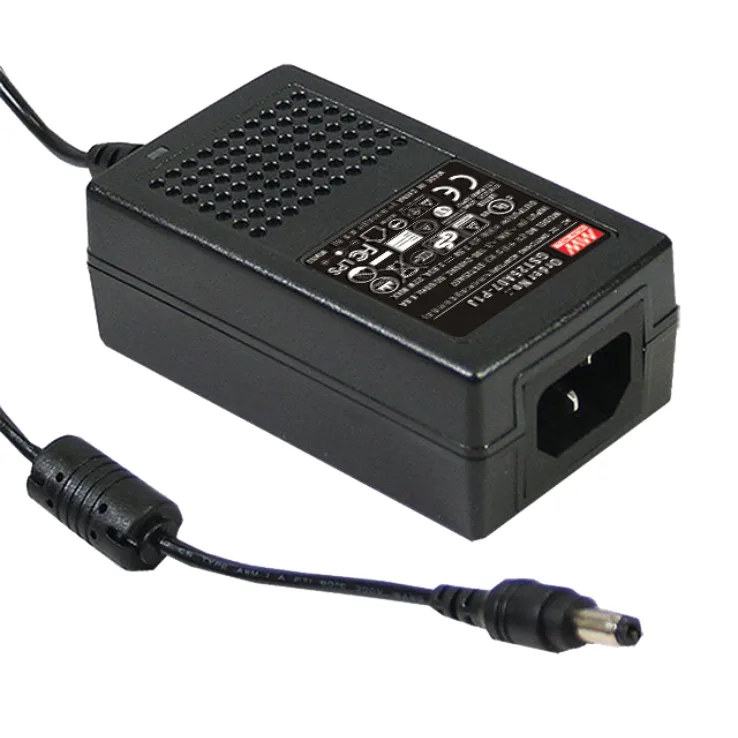

Mean Well GST25A Series External Power Supplies 20–25W

Download Datasheet
Models:
  • GST25A05-P1J
  • GST25A07-P1J
  • GST25A09-P1J
  • GST25A12-P1J
  • GST25A15-P1J
  • GST25A18-P1J
  • GST25A24-P1J
  • GST25A28-P1J
  • GST25A48-P1J
Manufacturer: Mean Well
Type: External Power Supplies

GST25A Series Features:

Fanless design with -30~+70°C working temperature

No load power consumption <0.075W

Protections: Short circuit / Overload / Over voltage

Other features:

  • Universal AC input/full range
  • 3 pole AC inlet IEC320-C14
  • Pass LPS
  • Energy efficiency level VI
  • Fully enclosed plastic case
  • Class I power (without earth pin)
  • Meet EISA 2007
  • 3 years warranty
Wattage 20 22 23 25 25 25 25 25 25
Input Voltage 85-264VAC 85-264VAC 85-264VAC 85-264VAC 85-264VAC 85-264VAC 85-264VAC 85-264VAC 85-264VAC
Output Current 4.0A 2.93A 2.55A 2.08A 1.66A 1.38A 1.04A 0.89A 0.52A
Output Voltage 5 7.5 9 12 15 18 24 28 48
Output Voltage Options Single Single Single Single Single Single Single Single Single
Dimensions 93x 54x 36 93x 54x 36 93x 54x 36 93x 54x 36 93x 54x 36 93x 54x 36 93x 54x 36 93x 54x 36 93x 54x 36
Working Temperature -30 -+70°C
Safety Standards UL60950-1, CSA C22.2, TUV EN60950-1, BMSI CNS14336, CCC GB4943, PSE J60950-1, AS/NZS 60950.1 approved
EMC Standards Compliance to EN55022 class B, EN61000-3-2,3, FCC PART 15 / CISPR22 class B, CAN ICES-3(B)/NWB-3(B),CNS13438 class B, GB9254, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11 light industry level, criteria A
