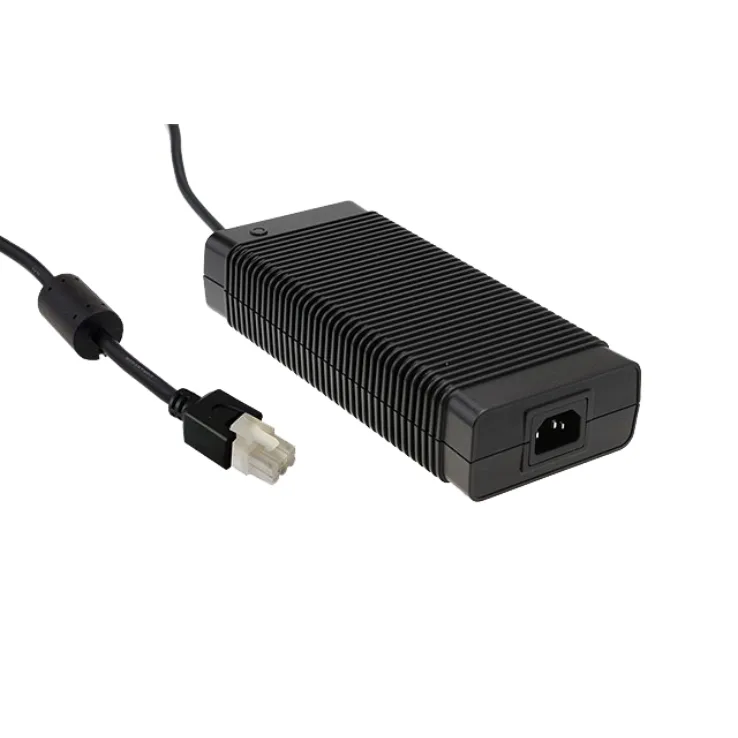

MEAN WELL GST280A Series External Power Supplies 252–280.32W

Models:	GST280A12-C6P GST280A15-C6P GST280A20-C6P GST280A24-C6P GST280A48-C6P
Manufacturer:	MEAN WELL
Type:	External Power Supplies

GST280A Series Features:

Fanless design with -30~+70°C working temperature

No load power consumption <0.15W

Protections: Short circuit / Overload / Over voltage

Other features:

Spec	GST280A12-C6P	GST280A15-C6P	GST280A20-C6P	GST280A24-C6P	GST280A48-C6P
Wattage	252	255	260	280.08	280.32
Input Voltage	85-264VAC	85-264VAC	85-264VAC	85-264VAC	85-264VAC
Output Current	21A	17A	13A	11.67A	5.84A
Output Voltage	12	15	20	24	48
Output Voltage Options	Single	Single	Single	Single	Single
DC output adjustment	120-370V	120-370V	120-370V	120-370V	120-370V
Dimensions	220x 95x 46	220x 95x 46	220x 95x 46	220x 95x 46	220x 95x 46
Working Temperature	-30 -+70°C
Safety Standards	UL60950-1, CSA C22.2, TUV EN60950-1, BMSI CNS14336, CCC GB4943, PSE J60950-1, AS/NZS 60950.1 approved
EMC Standards	Compliance to EN55022 class B, EN61000-3-2,3, FCC PART 15 / CISPR22 class B, CAN ICES-3(B)/NWB-3(B),CNS13438 class B, GB9254, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11 light industry level, criteria A
