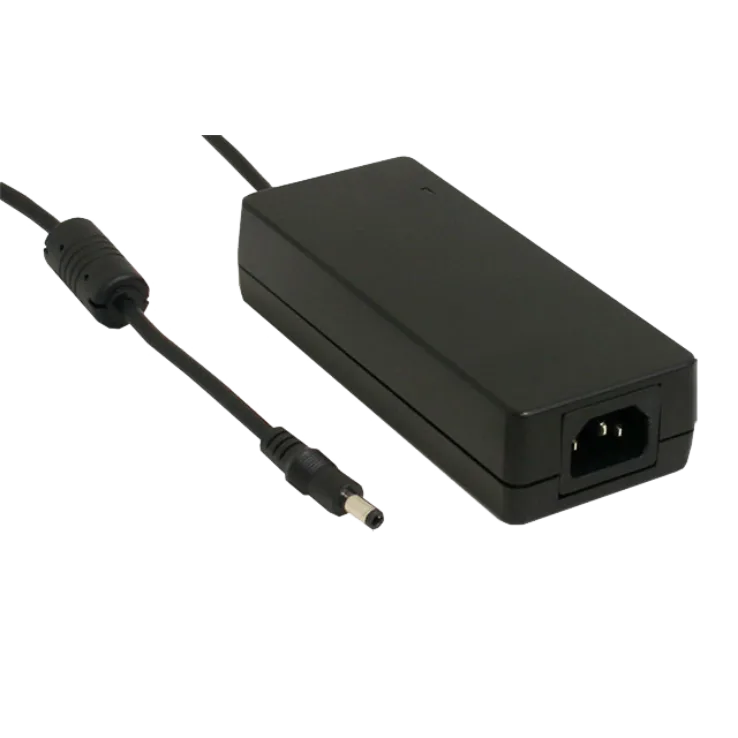

MEAN WELL GST90A Series External Power Supplies 80–90W

Models:	GST90A12-P1M GST90A15-P1M GST90A19-P1M GST90A24-P1M GST90A48-P1M
Manufacturer:	MEAN WELL
Type:	External Power Supplies

GST90A Series Features:

Fanless design with -30~+70°C working temperature

No load power consumption <0.15W

Protections: Short circuit / Overload / Over voltage

Other features:

Spec	GST90A12-P1M	GST90A15-P1M	GST90A19-P1M	GST90A24-P1M	GST90A48-P1M
Wattage	80	90	90	90	90
Input Voltage	90-264VAC	90-264VAC	90-264VAC	90-264VAC	90-264VAC
Output Current	6.67A	6A	4.74A	3.75A	1.87A
Output Voltage	12	15	19	24	48
Output Voltage Options	Single	Single	Single	Single	Single
DC output adjustment	127-370V	127-370V	127-370V	127-370V	127-370V
Dimensions	145x 60x 32	145x 60x 32	145x 60x 32	145x 60x 32	145x 60x 32
Working Temperature	-30 -+70°C
Safety Standards	UL60950-1, CSA C22.2, TUV EN60950-1, BMSI CNS14336, CCC GB4943, PSE J60950-1, AS/NZS 60950.1 approved
EMC Standards	Compliance to EN55022 class B, EN61000-3-2,3, FCC PART 15 / CISPR22 class B, CAN ICES-3(B)/NWB-3(B),CNS13438 class B, GB9254, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11 light industry level, criteria A
