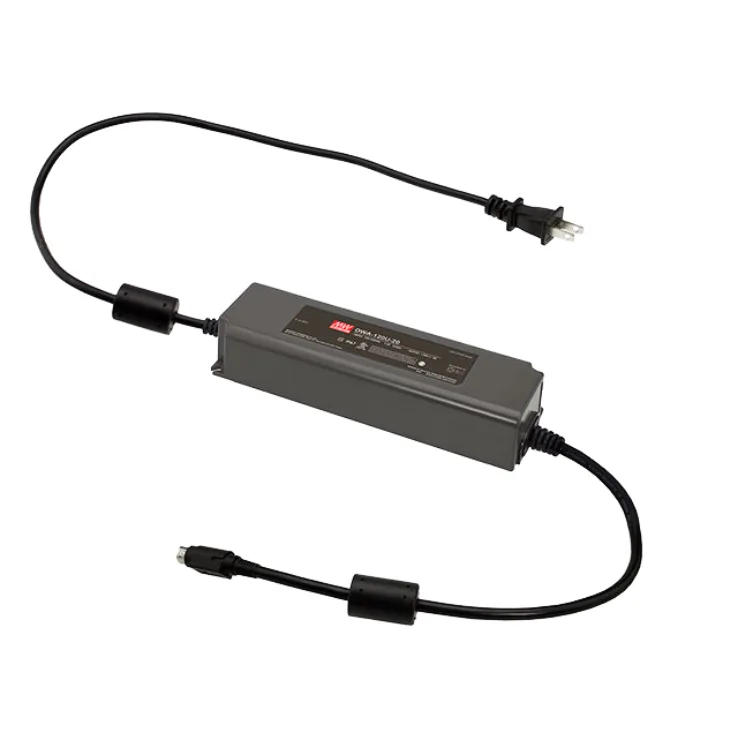

Mean Well OWA-120U Series External Power Supplies 120–124.2W

Download Datasheet
Models:
  • OWA-120U-12
  • OWA-120U-15
  • OWA-120U-20
  • OWA-120U-24
  • OWA-120U-30
  • OWA-120U-36
  • OWA-120U-42
  • OWA-120U-48
  • OWA-120U-54
Manufacturer: Mean Well
Type: External Power Supplies

OWA-120U Series Features:

OWA-120U is one 120W single-output external LED power supply series. Pairing the North American type of AC plug and prevailing DC connectors, OWA-120U, working like an adaptor, simplifies the connection with LED lighting fixtures without extra wiring efforts.

Features:

  • Universal AC input/ full range
  • Class II power unit, no FG
  • Built-in active PFC function
  • High efficiency up to 90.5%
  • No load power consumption <0.15W
  • Energy efficiency level VI
  • Comply with EISA 2007/DoE, NRCan
  • Fully isolated plastic case
  • Fanless design, cooling by free air convection
  • Protections: Short circuit / Over current / Over voltage / Over temperature
  • UL LISTED, suitable for dry and damp locations
  • 5 years warranty
Wattage 120 120 120 120 120 122.4 121.8 120 124.2
Input Voltage 90~264 VAC 127-370VDC 90~264 VAC 127-370VDC 90~264 VAC 127-370VDC 90~264 VAC 127-370VDC 90~264 VAC 127-370VDC 90~264 VAC 127-370VDC 90~264 VAC 127-370VDC 90~264 VAC 127-370VDC 90~264 VAC 127-370VDC
Output Current 10A 8A 6A 5A 4A 3.4A 2.9A 2.5A 2.3A
Output Voltage 12V 15V 20V 24V 30V 36V 42V 48V 54V
Dimensions 191*63*37.5mm 191*63*37.5mm 191*63*37.5mm 191*63*37.5mm 191*63*37.5mm 191*63*37.5mm 191*63*37.5mm 191*63*37.5mm 191*63*37.5mm
Working Temperature -40~+70°C
Safety Standards UL8750 listed, CSA C22.2 No.250.13-12; IP67 (for power body) approved
EMC Standards Compliance to FCC Part15
