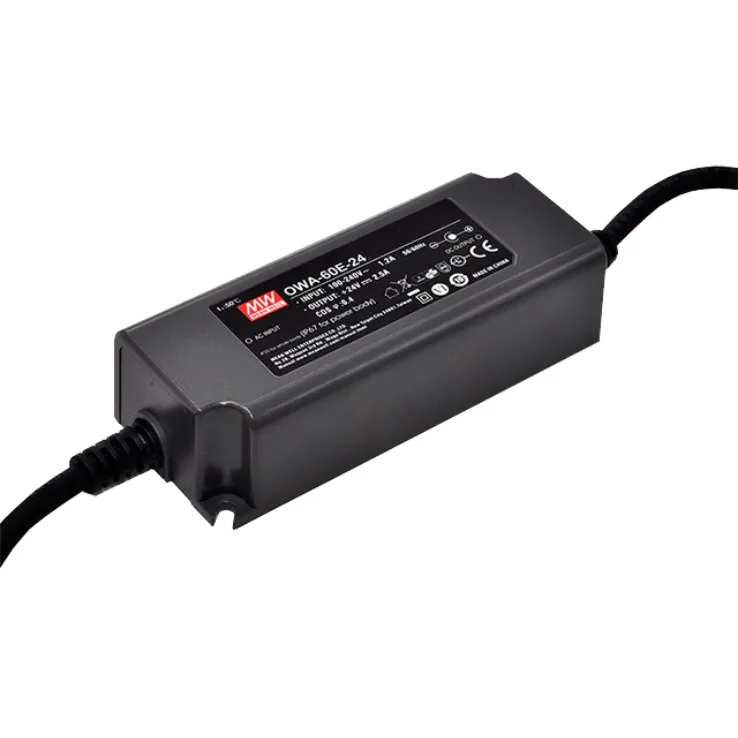

Mean Well OWA-60E Series External Power Supplies 12–60W

Download Datasheet
Models:
  • OWA-60E-12
  • OWA-60E-15
  • OWA-60E-20
  • OWA-60E-24
  • OWA-60E-30
  • OWA-60E-36
  • OWA-60E-42
  • OWA-60E-48
  • OWA-60E-54
Manufacturer: Mean Well
Type: External Power Supplies

OWA-60E Series Features:

OWA-60E is a 60W AC/DC, class II (no FG) external power supply series pinpointing the moisture proof feature. The fully-potted silicone inside the plastic enclosure enhances the heat dissipation; it also benefits that the power body of OWA-60E achieves IP67 level so that this series specializes the application in which the damp, humidity or dust resistance is needed for the external power supply.

Features:

  • Universal AC input/full range
  • High efficiency up to 91%
  • No load power consumption <0.15W
  • Comply with EU ErP and CoC Version 5
  • Protections: Short circuit / overload / Over voltage / Over temperature
  • Class II power units, no FG
  • Fully isolated plastic case
  • Fanless design, cooling by free air convection
  • 5 years warranty
Wattage 12 60 60 60 60 60 60 60 60
Input Voltage 90~264VAC 127~370VDC 90~264VAC 127~370VDC 90~264VAC 127~370VDC 90~264VAC 127~370VDC 90~264VAC 127~370VDC 90~264VAC 127~370VDC 90~264VAC 127~370VDC 90~264VAC 127~370VDC 90~264VAC 127~370VDC
Output Current 5A 4A 3A 2.5A 2A 1.67A 1.5A 1.25A 1.12A
Output Voltage 12V 15V 20V 24V 30V 36V 42V 48A 54V
Dimensions 130*53*35mm 130*53*35mm 130*53*35mm 130*53*35mm 130*53*35mm 130*53*35mm 130*53*35mm 130*53*35mm 130*53*35mm
Working Temperature -35~+70°C
Safety Standards EN615581, -2-16 listed; EN60335-1 listed (except for OWA-60E-48,54); EAC TP TC 004, IP67 approved for power body
EMC Standards Compliance to EN55032 (CISPR32) Class B, EN55014-1, EN61000-3-2 class A, EN61000-3-3; EAC TP TC 020
