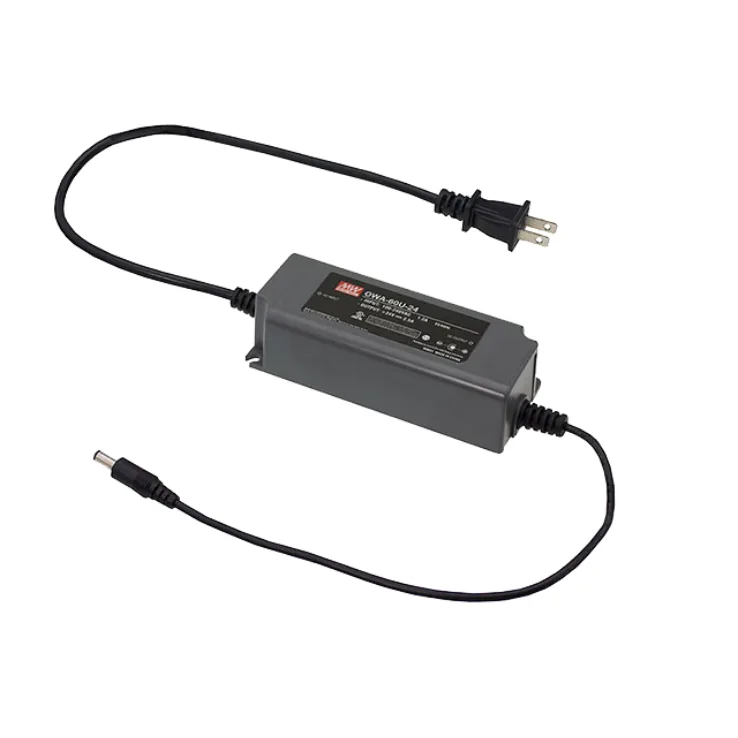

Mean Well OWA-60U Series External Power Supplies 60W

Download Datasheet
Models:
  • OWA-60U-12
  • OWA-60U-15
  • OWA-60U-20
  • OWA-60U-24
  • OWA-60U-30
  • OWA-60U-36
  • OWA-60U-42
  • OWA-60U-48
  • OWA-60U-54
Manufacturer: Mean Well
Type: External Power Supplies

OWA-60U Series Features:

OWA-60U is one 60W single-output external LED power supply series. Pairing then North American type of AC plug and the prevailing DC connectors, OWA-60U, working like an adaptor, simplifies the connection with LED lighting fixtures without extra wiring efforts.

Features:

  • Universal AC input / Full range
  • High efficiency up to 91%
  • Protections: Short circuit / Over current / Over voltage / Over temperature
  • Class II power unit, no FG
  • Class 2 power unit
  • Fully isolated plastic case
  • Fanless design, cooling by free air convection
  • No load power consumption <0.15W
  • Comply with EISA 2007 DoE and NRCan
  • UL LISTED, suitable for dry and damp locations
  • 5 years warranty
Wattage 60 60 60 60 60 60 60 60 60
Input Voltage 90~264VAC 127~370VDC 90~264VAC 127~370VDC 90~264VAC 127~370VDC 90~264VAC 127~370VDC 90~264VAC 127~370VDC 90~264VAC 127~370VDC 90~264VAC 127~370VDC 90~264VAC 127~370VDC 90~264VAC 127~370VDC
Output Current 5A 4A 3A 2.5A 2A 1.67A 1.25A 1.25A 1.12A
Output Voltage 12V 15V 20V 24V 30V 36V 42V 48V 54V
Dimensions 130*53*35mm 130*53*35mm 130*53*35mm 130*53*35mm 130*53*35mm 130*53*35mm 130*53*35mm 130*53*35mm 130*53*35mm
Working Temperature -40~+80°C
Safety Standards UL8750 listed, CSA C22.2 No.250-13-12(except for 42V,48V,54V);IP67 approved for power body
EMC Standards Compliance to FCC Part15
