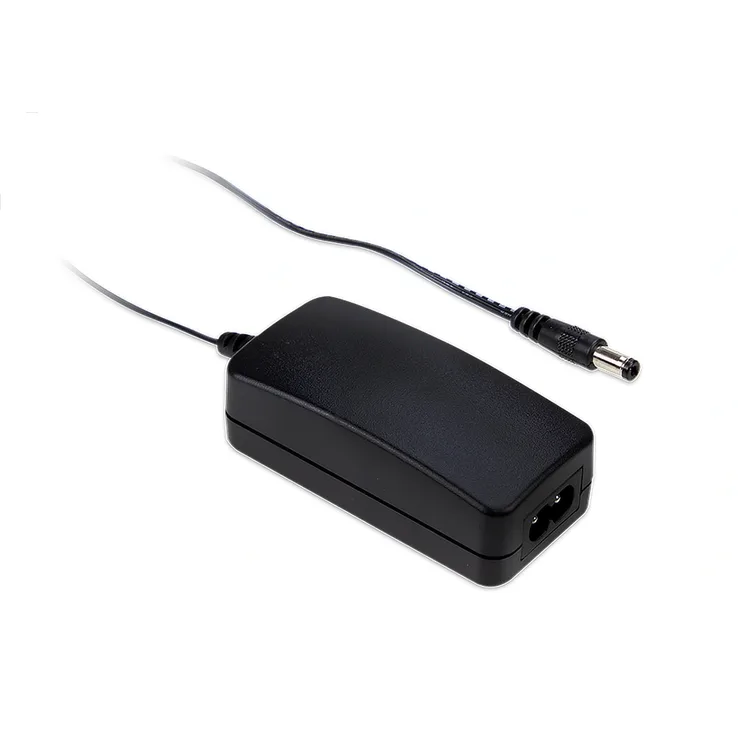

MEAN WELL SGAS15B Series External Power Supplies 12–15W

Download Datasheet
Models:
  • SGAS15B05-P1J
  • SGAS15B09-P1J
  • SGAS15B12-P1J
  • SGAS15B15-P1J
  • SGAS15B24-P1J
Manufacturer: MEAN WELL
Type: External Power Supplies

SGAS15B Series Features:

SGAS15B is a 15W compact size highly reliable, desktop style sing-output green adaptor series, which is compact and convenient for carry.

Features:

  • Extreme small
  • Universal AC input/Full range
  • 2 pole AC inlet IEC320-C8, Class II power unit
  • No load power consumption <0.075W
  • Energy efficiency Level VI
  • Comply with EISA 2007/DoE, EU ErP and meet CC Version 5
  • Protections: short circuit/overload/over voltage
  • Fully enclosed plastic case
  • Pass LPS
  • 7.5V/18V/48V models available (by request)
  • 3 years warranty
Wattage 12 15 15 15 15
Input Voltage 90~264VAC 90~264VAC 90~264VAC 90~264VAC 90~264VAC
Output Current 2.40A 1.66A 1.25A 1.00A 0.625A
Output Voltage 5 9 12 15 24
Dimensions 80x39x27.7mm 80x39x27.7mm 80x39x27.7mm 80x39x27.7mm 80x39x27.7mm
Working Temperature -20~70°C
Safety Standards UL62368-1, CSA C22.2 NO.62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
EMC Standards BS EN/EN6100-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4, BS EN/EN61000-4-5, BS EN/EN61000-4-6, BS EN/EN61000-4-8, BS EN/EN61000-4-11
