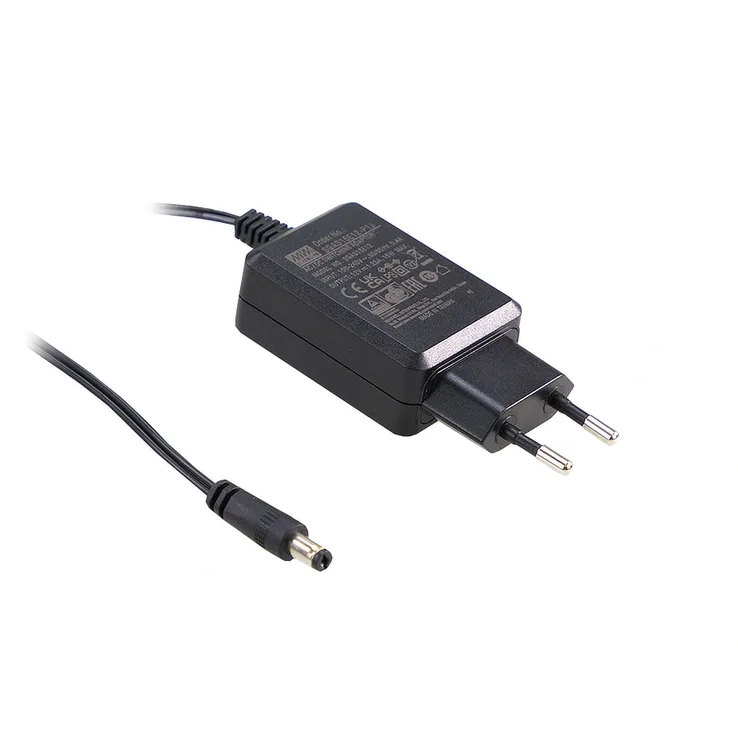

Mean Well SGAS15E Series External Power Supplies 12–15W

Download Datasheet
Models:
  • SGAS15E05-P1J
  • SGAS15E09-P1J
  • SGAS15E12-P1J
  • SGAS15E15-P1J
  • SGAS15E24-P1J
Manufacturer: Mean Well
Type: External Power Supplies

SGAS15E Series Features:

SGAS15E is a 15W compact size highly reliable, desktop style sing-output green adaptor series, which is compact and convenient for carry.

Features:

  • Extreme small and space saving, takes up one spot on power strip
  • Universal AC input/Full range
  • 2 pole EURO plug, Class II power unit
  • No load power consumption <0.075
  • Energy efficiency Level VI
  • Comply with EISA 2007/DoE
  • Protections: short circuit/overload/over voltage
  • Fully enclosed plastic case
  • Pass LPS
  • 7.5V/18V/48V models available (by request)
  • 3 years warranty
Wattage 12 15 15 15 15
Input Voltage 90~264VAC 90~264VAC 90~264VAC 90~264VAC 90~264VAC
Output Current 2.40 1.66 1.25 1.00 0.625A
Output Voltage 5 9 12 15 24
Dimensions 75.6x42.1x24.7mm 75.6x42.1x24.7mm 75.6x42.1x24.7mm 75.6x42.1x24.7mm 75.6x42.1x24.7mm
Working Temperature -20~70°C
Safety Standards TUV BS EN/EN62368-1, EAC TP TC 004 approved
EMC Standards BS EN/EN55032(CISPR32), BS EN/EN61000-3-2, BS EN/EN61000-3-3
