MEAN WELL

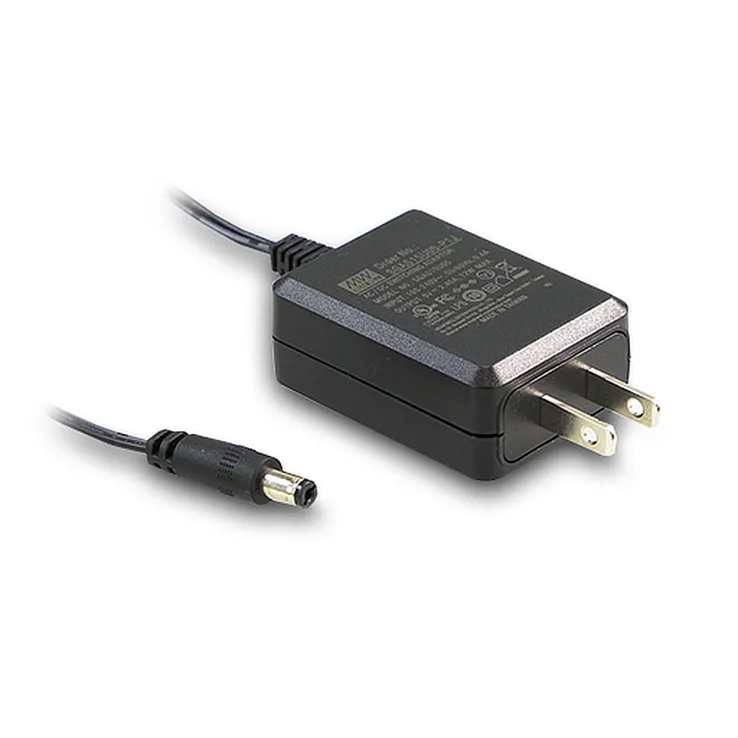

MEAN WELL SGAS15U Series External Power Supplies 12–15W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | External Power Supplies |
SGAS15U Series Features:
SGAS15U is a 15W compact size highly reliable, desktop style sing-output green adaptor series, which is compact and convenient for carry.
Features:
- Extreme small and space saving, takes up one spot on power strip
- Universal AC input/Full range
- 2 pole USA inlet, Class II power unit
- No load power consumption <0.075W
- Energy efficiency Level VI
- Comply with EISA 2007/DoE
- Protections: short circuit/overload/over voltage
- Fully enclosed plastic case
- Pass LPS
- 7.5V/18V/48V models available (by request)
- 3 years warranty
| Wattage | 12 | 15 | 15 | 15 | 15 |
|---|---|---|---|---|---|
| Input Voltage | 90~264VAC | 90~264VAC | 90~264VAC | 90~264VAC | 90~264VAC |
| Output Current | 2.40A | 1.66A | 1.25A | 1.00A | 0.625A |
| Output Voltage | 5 | 9 | 12 | 15 | 24 |
| Dimensions | 57.6x42.1x24.7mm | 57.6x42.1x24.7mm | 57.6x42.1x24.7mm | 57.6x42.1x24.7mm | 57.6x42.1x24.7mm |
| Working Temperature | -20~70°C | ||||
| Safety Standards | UL62368-1, CSA C22.2 NO.62368-1, EAC TP TC 004 approved | ||||
| EMC Standards | FCC PART 15/CISPR22, CAN ICES-3(B)/NMB-3(B) | ||||
