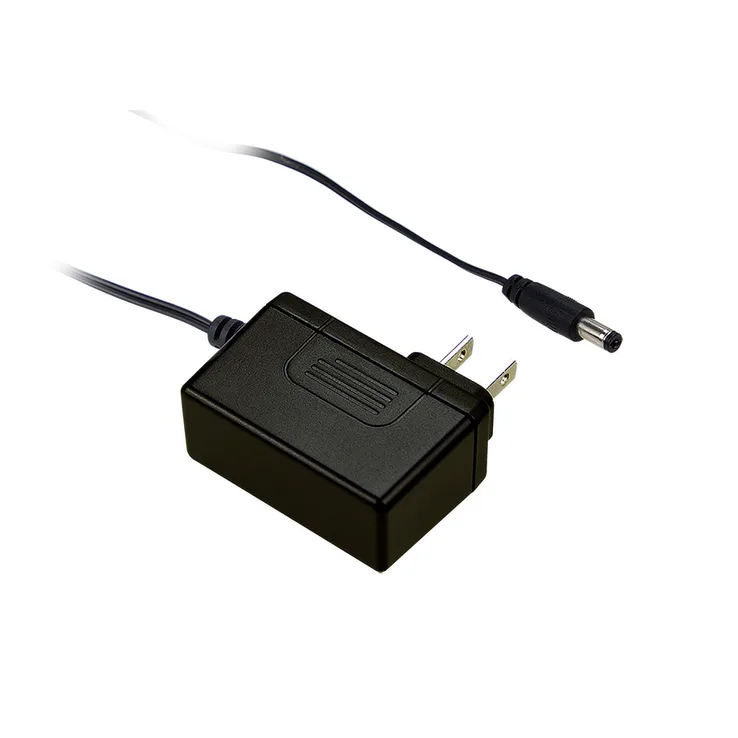

Mean Well SGAS60U Series External Power Supplies 30–60W

Download Datasheet
Models:
  • SGAS60U05-P1J
  • SGAS60U12-P1J
  • SGAS60U15-P1J
  • SGAS60U24-P1J
  • SGAS60U48-P1J
Manufacturer: Mean Well
Type: External Power Supplies

SGAS60U Series Features:

SGAS60U is a 60W compact size highly reliable, desktop style sing-output green adaptor series, which is compact and convenient for carry.

Features:

  • Extreme small
  • Universal AC input/Full range
  • 2 pole USA plug, Class II power unit
  • No load power consumption <0.15W
  • Energy efficiency Level VI
  • Comply with EISA 2007/DoE
  • Protections: short circuit/overload/over voltage
  • Fully enclosed plastic case
  • Pass LPS
  • 7.5V/18V/48V models available (by request)
  • 3 years warranty

Wattage 30 60 60 60 60
Input Voltage 90~264VAC 90~264VAC 90~264VAC 90~264VAC 90~264VAC
Output Current 6 5 4 2.5 1.25
Output Voltage 5 12 15 24 48
Dimensions 75.5x32x47.5mm 75.5x32x47.5mm 75.5x32x47.5mm 75.5x32x47.5mm 75.5x32x47.5mm
Working Temperature -20~70°C
Safety Standards UL62368-1, CSA C22.2 NO.62368-1, EAC TP TC 004 approved
EMC Standards FCC PART 15/CISPR22, CAN ICES-3(B)/NMB-3(B)
