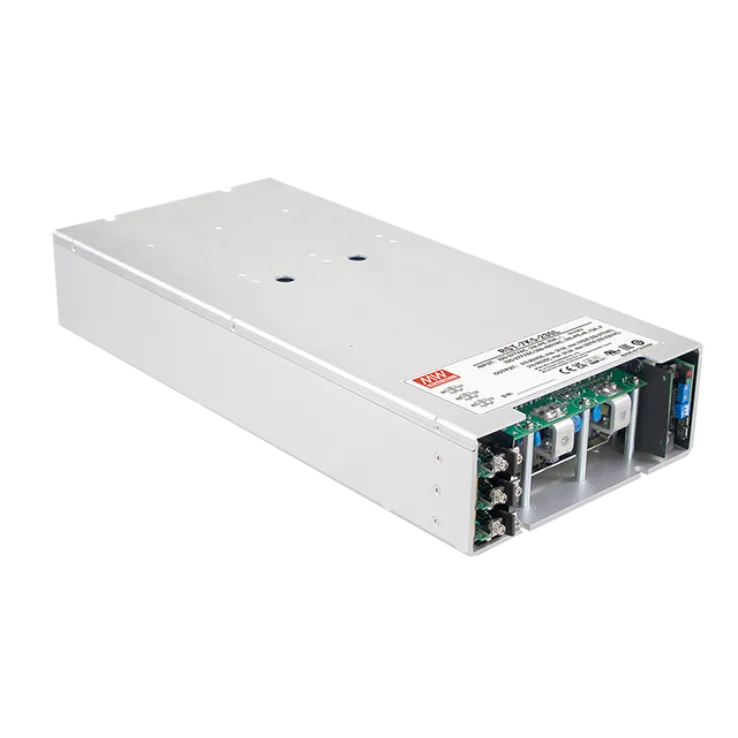

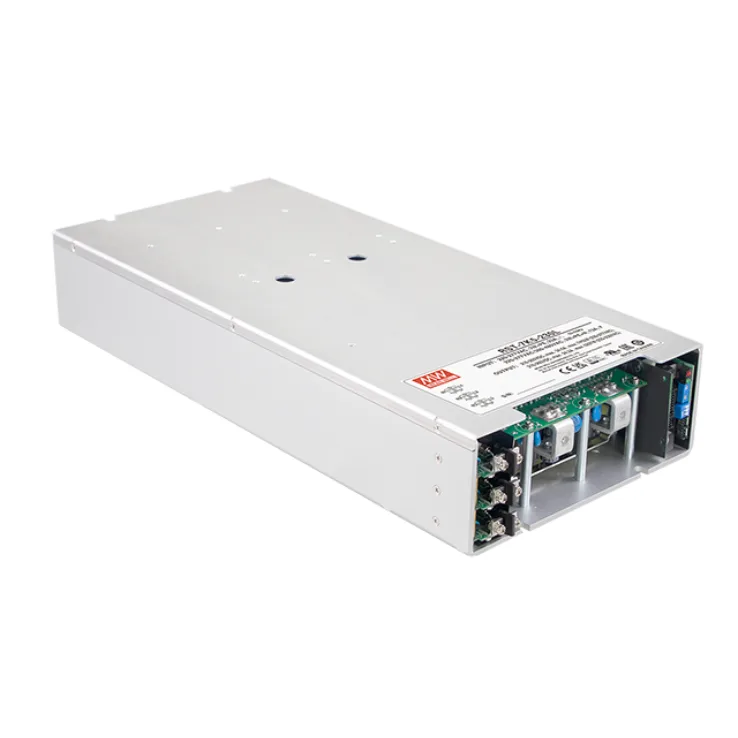

MEAN WELL RST-7K5 Series Enclosed Power Supplies 7452–7515W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Enclosed Power Supplies |
RST-7K5 Series Features:
RST-75K5 is a 7.5KW single output enclosed type AC/DC power supply.
Features:
- 3Ø4W AC input with 340~530V wide range
- High efficiency up to 95%
- Water/forced air cooling types selectable
- Output voltage and current level programmable
- Wide voltage adjustment range 1%~120%
- Active current sharing (Parallel) up to 30kW
- Protections: Short circuit, Over voltage, Overload, Over temperature
- Built-in T-alarm / DC-OK / Fan fail / AC fail signals
- 5 years warranty
| Wattage | 7475 | 7452 | 7515 |
|---|---|---|---|
| Input Voltage | 196~305VAC | 196~305VAC | 196~305VAC |
| Output Current | 65 | 34.5 | 22.5 |
| Output Voltage | 115 | 230 | 380 |
| Dimensions | 460x211x83.5mm | 460x211x83.5mm | 460x211x83.5mm |
| Working Temperature | -30~70°C | ||
| Safety Standards | UL62368-1, CAN/CSA C22.2 , TUV BS EN/EN62368-1, EAC TP TC 004 approved | ||
| EMC Standards | BS EN/EN55032(CISPR32) / BE EN/EN55011(CISPR11), BS EN/EN61000-3-2, BS EN/EN61000-3-3 | ||
