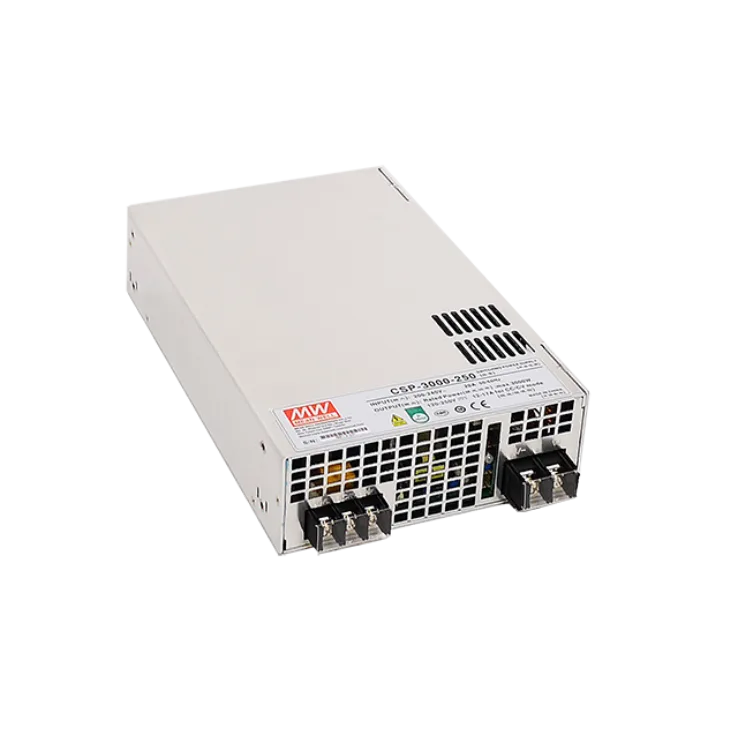

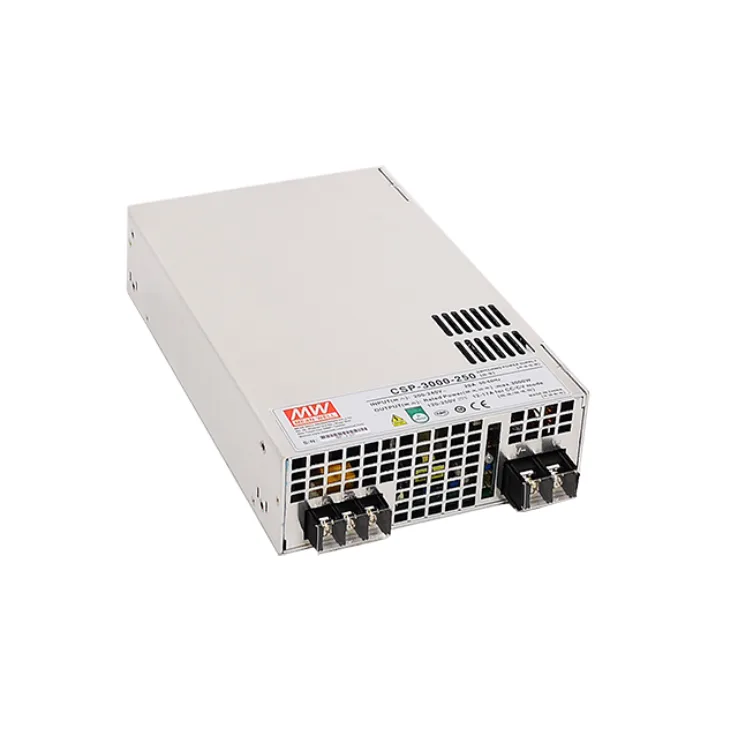

MEAN WELL CSP-3000 Series Enclosed Power Supplies 3000W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Enclosed Power Supplies |
CSP-3000 Series Features:
AC-DC Single output enclosed power supply with PFC; Output 120Vdc-400Vdc at 25A-6A; remote ON/OFF
Forced air cooling by built-in DC fans
AC input 180~264VAC
Other features:
- Built-in active PFC function
- Active current sharing up to 7200W(2+1)
- Built-in remote ON-OFF control /auxiliary power/power OK signal
- High efficiency up to 93%
- 5 years warranty
| Wattage | 3000 | 3000 | 3000 |
|---|---|---|---|
| Input Voltage | 180-264VAC, 254-370VDC | 180-264VAC, 254-370VDC | 180-264VAC, 254-370VDC |
| Output Current | 25A | 12A | 7.5A |
| Output Voltage | 120V | 250V | 400V |
| Output Voltage Options | Single | Single | Single |
| Dimensions | 278 x 177.8 x 63.5 | 278 x 177.8 x 63.5 | 278 x 177.8 x 63.5 |
| Working Temperature | -20 - +65°C | ||
| Safety Standards | UL62368-1,Dekra seal EN62368-1, EAC TP TC004, GB4943.1 | ||
| EMC Standards | EN55032(CISPR32)/EN55011(CISPR11), EN61000-3-2, EN61000-3-3,EN61000-4-2,3,4,5,6,8,11 | ||
