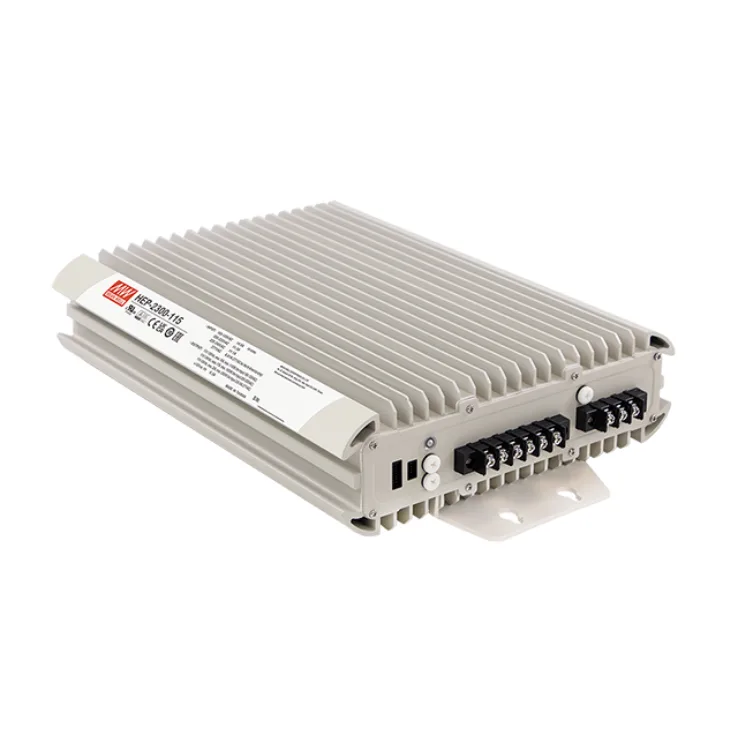

MEAN WELL HEP-2300-HV Series Enclosed Power Supplies 2300W

Models:	HEP-2300-115 HEP-2300-230 HEP-2300-380
Manufacturer:	MEAN WELL
Type:	Enclosed Power Supplies

HEP-2300-HV Series Features:

HEP-2300 IS A 2300w industrial AC/DC power supply featuring the outstanding capability tp operate under highly humid, dusty, oily and high-vibration harsh environment.

Features:

High voltage output (115/230/380VDC)
High efficiency up yo 95.5% and active PFC function
Fanless design, cooling by free air convection
Aluminum case and filling with heat-conducted glue
Withstand 10G vibration
-40~70°C wide operating temperature
Built-in CANBus protocol/Optional PMBus protocol
Output voltage and constant current level programmable
Protections: short circuit/ overload/ over voltage/ over temperature
Built-in remote ON-OFF control and DC OK active signal
LED indicator for power on

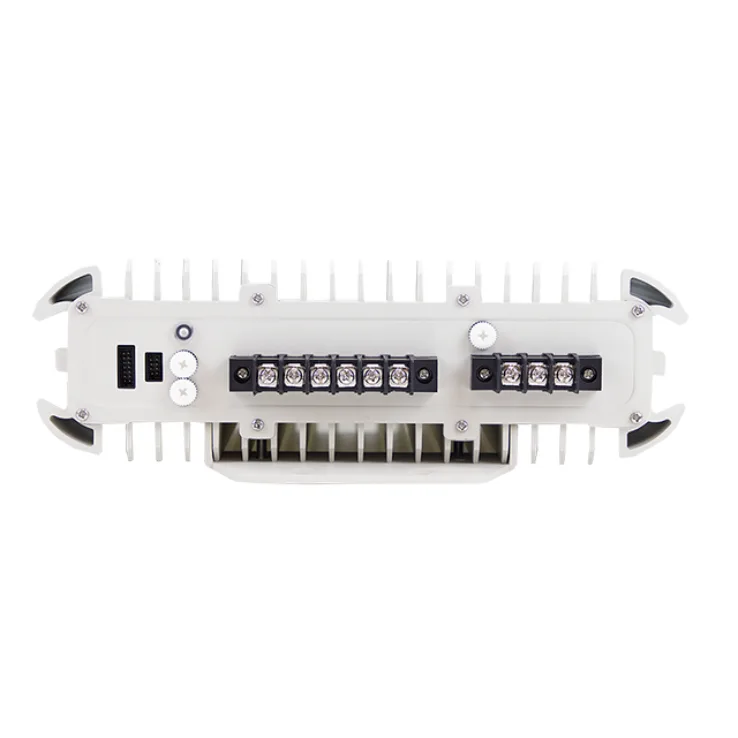

Diverse installation scenarios-mounting methods

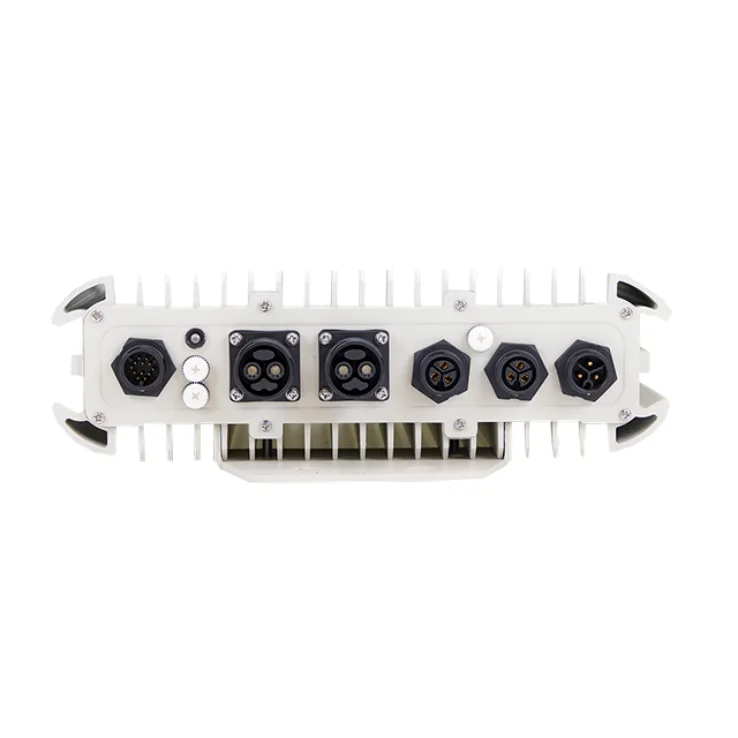

Wiring type with IP67 rating
6 years warranty

Spec	HEP-2300-115	HEP-2300-230	HEP-2300-380
Wattage	2300	2300	2300
Input Voltage	90~305VAC	90~305VAC	90~305VAC
Output Current	20	10	6.9
Output Voltage	115	230	380
Dimensions	375x280x88mm	375x280x88mm	375x280x88mm
Working Temperature	-40~70°C
Safety Standards	UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved; design refers to BS EN/EN61558-1, BS EN/EN60335-1(by request)
EMC Standards	BS EN/EN55032(CISPR32), BS EN/EN61000-3-2, BS EN/EN61000-3-3
