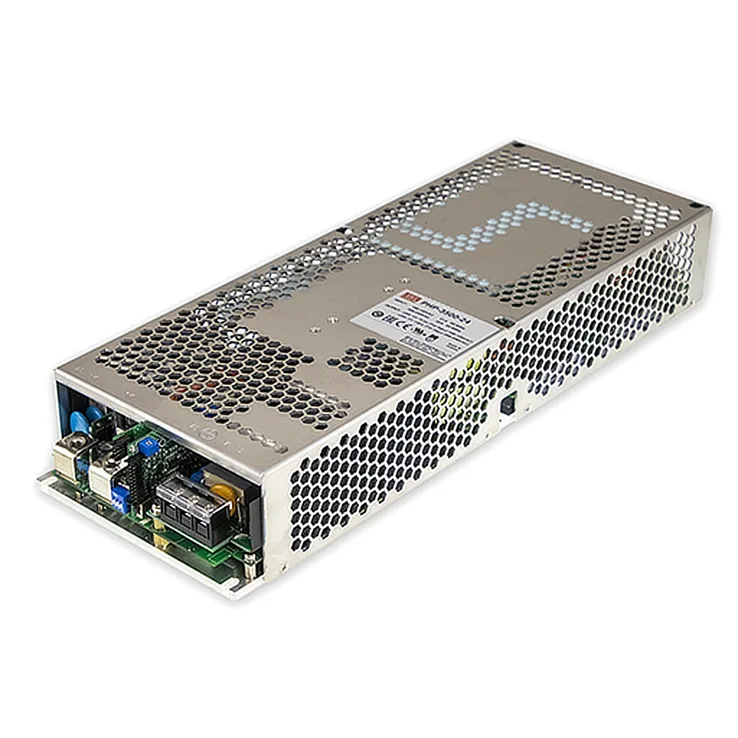

MEAN WELL PHP-3500-HV Series Enclosed Power Supplies 3500W

Models:	PHP-3500-115 PHP-3500-230 PHP-3500-380
Manufacturer:	MEAN WELL
Type:	Enclosed Power Supplies

PHP-3500-HV Series Features:

PHP-3500-HV series is a 3500W single-output slim type power supply with 60mm of low profile design. Adopting the full range 90~264VAC input, the entire series provides an output voltage line of 115V, 230V and 380VDC.

Features:

High voltage output (115/230/380V DC)
Slim and low profile (60mm)
Fanless design with water or conduction cooling
Active PFC design and efficiency up to 96%
Built-in PMBus communication protocol, CANBus optional
Output voltage and constant current level programmable
Protections: Short circuit/ Overload/ Over voltage/ Over temperature
Built-in remote ON/OFF control and DC-OK active signal
Optional water-cooling plate for quick installation
OVC III operating altitude up to 2000 meter
LED indicator for power on
5 years warranty

Spec	PHP-3500-115	PHP-3500-230	PHP-3500-380
Wattage	3500	3500	3500
Input Voltage	90~264VAC	90~264VAC	90~264VAC
Output Current	25.2	15.2	9.2
Output Voltage	115	230	380
Dimensions	380141.460mm	380141.460mm	380141.460mm
Working Temperature	-30~+70°C
Safety Standards	UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 arrpoved; design refers to BS EN/EN61558-1, BS EN/EN60335-1
EMC Standards	EN55032 (CISPR32), EN61000-3-12, EN61000-3-3
